Not specified splitter P-38022-2-000

powerrobustIP67

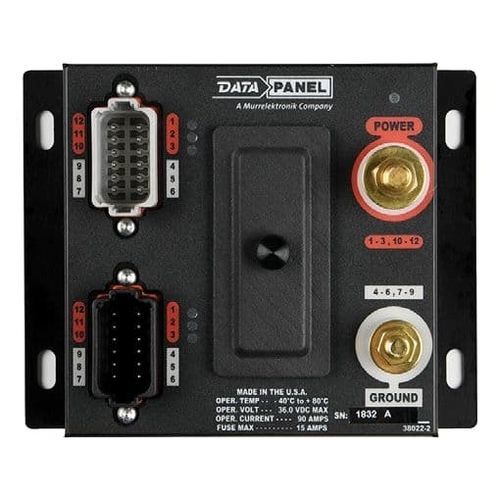

The power splitter PSF-2 is perfectly suited to provide selectively fused actuator voltages for our xtremeDB bus modules. The supply of up to 90 A is done via solid threaded bolts. The output potentials are provided via the two 12-pin DT / AT connectors in a plug-proof coding A / B. Two pins are available per potential. The fuse protection is provided by commercially available car fuses. The power splitter is robust, fully encapsulated and IP67 tested. Mechanical Data Dimensions - 169 x 134 x 53 mm Weight - 600 g Material (Housing) - Al, black anodized CAN / Sensor / Module Connector - DT-12 Power Connector - bolts Electrical Data Operating Voltage - 8 … 36 V DC Operating Current per Contact / Potential (max.) - 13,5 A Sum Current (max.) - 90 A Supply Protection - Reverse polarity protection LED Indicators - Supply: blue, Output: green (each potential) Environmental Conditions Protection Class - IP67 Ambient temperature - -40 °C…+80 °C
