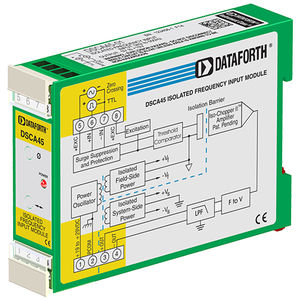

Input signal conditioning module DSCA45-xx Series
frequencyisolatedDIN rail

Input signal conditioning module - DSCA45-xx Series - Dataforth Corporation - frequency / isolated / DIN rail
Input signal conditioning module - DSCA45-xx Series - Dataforth Corporation - frequency / isolated / DIN rail
Input signal conditioning module - DSCA45-xx Series - Dataforth Corporation - frequency / isolated / DIN rail - image - 2
Input signal conditioning module - DSCA45-xx Series - Dataforth Corporation - frequency / isolated / DIN rail - image - 3
Input signal conditioning module - DSCA45-xx Series - Dataforth Corporation - frequency / isolated / DIN rail - image - 4
Input signal conditioning module - DSCA45-xx Series - Dataforth Corporation - frequency / isolated / DIN rail - image - 5
Input signal conditioning module - DSCA45-xx Series - Dataforth Corporation - frequency / isolated / DIN rail - image - 6
Input signal conditioning module - DSCA45-xx Series - Dataforth Corporation - frequency / isolated / DIN rail - image - 7
Input signal conditioning module - DSCA45-xx Series - Dataforth Corporation - frequency / isolated / DIN rail - image - 8
Input signal conditioning module - DSCA45-xx Series - Dataforth Corporation - frequency / isolated / DIN rail - image - 9
Input signal conditioning module - DSCA45-xx Series - Dataforth Corporation - frequency / isolated / DIN rail - image - 10
Input signal conditioning module - DSCA45-xx Series - Dataforth Corporation - frequency / isolated / DIN rail - image - 11
Input signal conditioning module - DSCA45-xx Series - Dataforth Corporation - frequency / isolated / DIN rail - image - 12
Input signal conditioning module - DSCA45-xx Series - Dataforth Corporation - frequency / isolated / DIN rail - image - 13
Input signal conditioning module - DSCA45-xx Series - Dataforth Corporation - frequency / isolated / DIN rail - image - 14
Input signal conditioning module - DSCA45-xx Series - Dataforth Corporation - frequency / isolated / DIN rail - image - 15
Input signal conditioning module - DSCA45-xx Series - Dataforth Corporation - frequency / isolated / DIN rail - image - 16
Input signal conditioning module - DSCA45-xx Series - Dataforth Corporation - frequency / isolated / DIN rail - image - 17
Input signal conditioning module - DSCA45-xx Series - Dataforth Corporation - frequency / isolated / DIN rail - image - 18
Input signal conditioning module - DSCA45-xx Series - Dataforth Corporation - frequency / isolated / DIN rail - image - 19
Input signal conditioning module - DSCA45-xx Series - Dataforth Corporation - frequency / isolated / DIN rail - image - 20
Input signal conditioning module - DSCA45-xx Series - Dataforth Corporation - frequency / isolated / DIN rail - image - 21
Input signal conditioning module - DSCA45-xx Series - Dataforth Corporation - frequency / isolated / DIN rail - image - 22
Input signal conditioning module - DSCA45-xx Series - Dataforth Corporation - frequency / isolated / DIN rail - image - 23
Input signal conditioning module - DSCA45-xx Series - Dataforth Corporation - frequency / isolated / DIN rail - image - 24
Add to favorites
Compare this product


Characteristics

Signal type
input
Options
frequency
Other characteristics
isolated, DIN rail

Description

Each DSCA45 frequency input module provides a single channel of frequency input which is isolated and converted to a standard analog voltage or current output. The frequency input signal can be a TTL level or zero-crossing signal. Terminal 7 (-IN) on the field-side terminal block is the "common" or ground connection for input signals. A TTL signal is connected from terminal 6 (+IN) to terminal 7 (-IN), while a zero-crossing signal is connected from terminal 5 (+EXC) to terminal 7 (-IN). Input circuitry for each of the signal types has hysteresis built in. An input signal must cross entirely through the hysteresis region in order to trigger the threshold comparator. A +5.1V excitation is available for use with magnetic pick-up or contact-closure type sensors. The excitation is available on terminal 8 (-EXC) with return at terminal 7 (-IN). Module output is either voltage or current. For current output models a dedicated loop supply is provided at terminal 3 (+OUT) with loop return located at terminal 4 (-OUT). The system-side load may be either floating or grounded.
