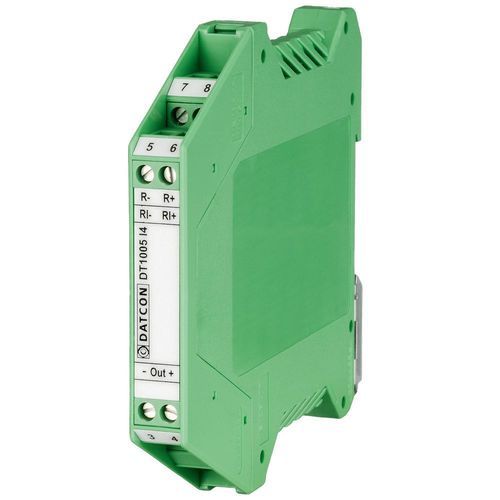

Resistance transmitter DT1005 I4 series

Resistance / potentiometer inputs 3 or 4 wire measurement 0-10000 ohm measurement ranges Two wire 4-20 mA transmitter 0.05% accuracy TS-35 rail mounting, 12.5 mm width The DT1005 I4 Resistance / Potentiometer Transmitter provide a 4-20 mA signal in proportional to the resistance / potentiometer connected to their input. The device is loop-powered from 4-20 mA signal. The resistance / potentiometer can be connect in 3 or 4 wire measuring mode. The input ranges are fix configurated, see on the above table. Different ranges for customer request also available. Input and output is not isolated.
