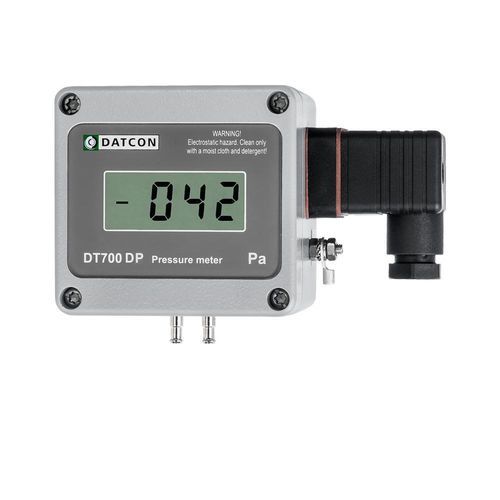

Differential pressure transmitter DT700 DP

silicon4-20 mAwall-mounted

Product features

• Measuring of the pressure-differences of gases
• Medium temperature: up to 60 °C
• 8 measurement ranges between 0 and 5000 Pa
• 4-20 mA two-wire transmitter
• LCD display
• IP65 protection

Product description
The DT700 DP / DT701 DP Differential Pressure Transmitters are suitable for measurement differential pressure of dry non corrosive gases.
The instruments provide 4-20 mA current signal, proportional to the pressure difference connected to their pressure ports.
The DT700 DP presents the measured pressure value on an LCD display too, while the instrument DT701 DP is a version without display.
Eight different measurement ranges are available from 0-50 Pa up to 0-5000 Pa, but user defined measuring ranges are also available. The temperature of the measured medium may vary between -20°C and +60°C.
The signal to be measured can be connected to the transmitter via pneumatic tubes have 2 × Ø 4 mm inner diameter.
The die-cast aluminium housing has IP65 protection.

Technical specifications
Safety data: The connection terminals of the supply voltages are isolated from each other, the isolation is in compliance with the standard
EN 61010-1, taking into consideration the following:

• Pollution level: 2
• Measurement category: II

Input parameters:

• Input signal: pressure
• Ranges: see the table below
• Overdrive capacity: 150%

Output parameters:

• Output signal: DC current, proportional to the measured pressure
• Range: 4-20 mA
• Temperature-coefficient: 500 ppm / °C
• Supply-voltage effect: no
• Response time: 0.5 ms (10-90%)

Display:

• Display: 3.5 digits, + or - sign, decimal point
• Display unit: LCD, 12.7 mm with character heigh

Power supply:

• Loop power supply voltage: 12-30 VDC

Ambient conditions:

• Operating temperature range: see the table below
• Relative humidity: 90% (max., non-condensing)
• Place of installation: closed area

Electromagnetic compatibility (EMC) accordance with the standard EN 61326

• Immunity: industrial area
• Noise emission: Group 1, Class B

Data in general:

• Housing: aluminium alloy box
• Process connection: 2 × Ø 4 mm pneumatic tube
• Electrical connection: 3-pole connector DIN43650/IP 65
• Cross-section of the connected cable: 2 × 0,25 mm2 (shielded cable)
• Dimensions: 127 × 85 × 58 mm (width × height × depth)
• Weight: DT700 DP: 0.45 kg
• Protection: IP65

Detailed information see in operating instructions. The Manufacturer maintans the right to change the technical data!
