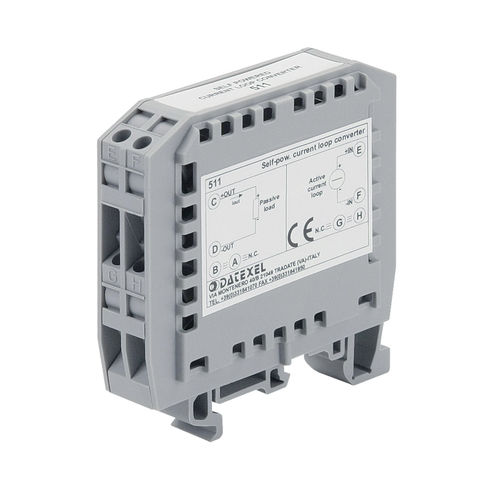

Current loop analog signal transmitter DAT511

DIN railself-poweredgalvanically-isolated

The DAT511 model is a galvanically isolated current transmitter that is integrated with an input current ranging from 0 to 20 ma. Transformed into an output current of the same range, this model maintains the galvanic isolation from the input circuit. Constructed in accordance to Directive 2004/108/EC, this device is a passive isolator therefore employing a measurement signal to generate itself and not needing an external power supply. This current transmitter is constructed in a plastic housing that is 17 mm thick and ideal for DIN rail installation.
