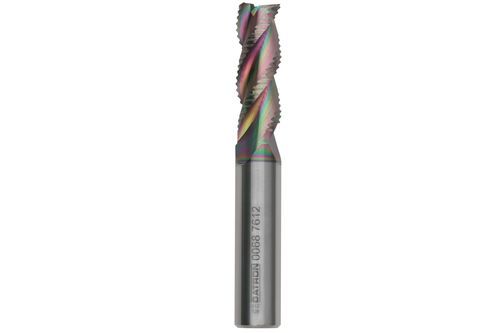

End mill 00687608roughingDLC-coatedfor aluminum
Add to favorites
Compare this product
Characteristics
- Geometry
- end mill
- Type
- roughing
- Material
- DLC-coated
- Treated material
- for aluminum, for non-ferrous metals, for brass, for copper
- Other characteristics
- 3-flute
- Diameter
Min.: 6 mm
(0.24 in)Max.: 10 mm
(0.39 in)- Length
Min.: 57 mm
(2.24 in)Max.: 70 mm
(2.76 in)
Description
Description DATRON Roughing End Mill Pros are built for high-performance roughing in aluminum, brass, copper, and bronze. Their optimized triple-flute roughing geometry delivers aggressive material removal, reduced vibration, and stable cutting performance in the most demanding applications. Advanced flute geometry improves chip evacuation and helps prevent excess buildup during large roughing operations, while reduced spindle load supports consistent machining and greater efficiency. A durable DLC coating extends tool life and minimizes heat generation, making Roughing End Mill Pros the best choice for fast, efficient non-ferrous machining in spindles 3kW and larger.
Key features
Available dimensions / variants (table) Cutting Diameter (D1): 6 mm / 8 mm / 10 mm
Shank (D2): 6 mm / 8 mm / 10 mm
D3: 5.5 mm / 7.4 mm / 9.2 mm
Length (L1): 57 mm / 60 mm / 70 mm
Cutting Depth (L2): 16 mm / 21 mm / 26 mm
L3: 21 mm / 26 mm / 31 mm
Flutes: 3
Operations: Roughing
caractéristiques / spécifications techniques
Key features
- Optimized triple-flute roughing geometry for aggressive material removal
- Reduced vibration and stable cutting performance
- Advanced flute geometry for improved chip evacuation and reduced buildup
- Reduced spindle load for consistent machining and greater efficiency
- Durable DLC coating to extend tool life and minimize heat generation
- Designed for non-ferrous materials: aluminum, brass, copper, bronze
- Recommended for spindles 3 kW and larger
Available dimensions / variants (table) Cutting Diameter (D1): 6 mm / 8 mm / 10 mm
Shank (D2): 6 mm / 8 mm / 10 mm
D3: 5.5 mm / 7.4 mm / 9.2 mm
Length (L1): 57 mm / 60 mm / 70 mm
Cutting Depth (L2): 16 mm / 21 mm / 26 mm
L3: 21 mm / 26 mm / 31 mm
Flutes: 3
Operations: Roughing
caractéristiques / spécifications techniques
- Product name: Roughing Pro End Mill
- Brand: DATRON
- Material compatibility: Aluminum, Brass, Copper, Bronze (non-ferrous)
- Geometry: Triple-flute roughing geometry
- Coating: DLC (Diamond-Like Carbon)
- Recommended spindle: 3 kW and larger
- Available cutting diameters (D1): 6 mm, 8 mm, 10 mm
- Available shank diameters (D2): 6 mm, 8 mm, 10 mm
- D3 sizes: 5.5 mm, 7.4 mm, 9.2 mm
- Lengths (L1): 57 mm, 60 mm, 70 mm
- Cutting depths (L2): 16 mm, 21 mm, 26 mm
- L3 sizes: 21 mm, 26 mm, 31 mm
- Flutes: 3
- Typical applications: High-performance roughing, aggressive material removal, large roughing operations
- Price range on page: $99.27 – $190.90
- Known SKUs (examples of available variants): 00687610 (10 mm variant), 00687608 (8 mm variant)
