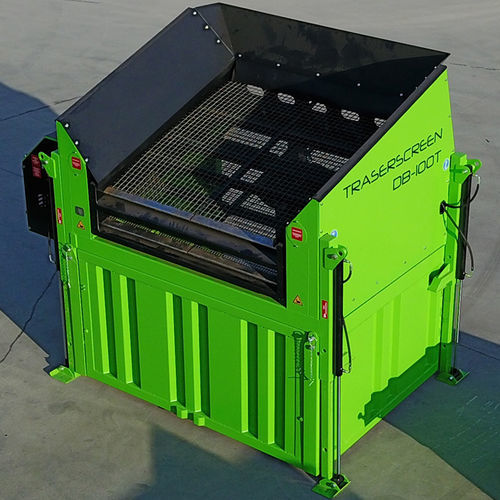

Vibrating screener DB-100Tmobilefor bulk materialsdouble-deck
Add to favorites
Compare this product
Characteristics
- Type
- mobile, vibrating
- Material
- for bulk materials
- Other characteristics
- double-deck
- Weight
2,200 kg
(4,850 lb)- Screening surface
3.4 m²
(36.6 ft²)- Capacity
Max.: 150 t/h
(92 lb/s)Min.: 37 t/h
(23 lb/s)- Engine power
6.3 kW
(8.57 hp)
Description
Type of vehicle: trailer
Category: O2
MADE AND DESIGNED IN SLOVAKIA.
Return on investment within one year!
Screens 37 to 150 tons of material per hour!
Double deck screener on the O2 category trailer for easy transport. Change from transport to work position within minutes. Possibility of delivery with a 3 fraction chute on a screen box.
Transport length - 5 190 mm
Transport width - 2 220 mm
Transport height - 2 894 mm
Working length - 3 572 mm
Working width - 2 220 mm
Working height - 2 926 mm
Weight - 2 200 kg
Mesh length - 1 865 mm
Mesh width - 910 mm
Number of meshes - 4 (2 in each of 2 decks)
Number of fractions - 2
Hopper width - 2 512 mm
Offtake width width - 2 400 mm
Optional modifications - No
