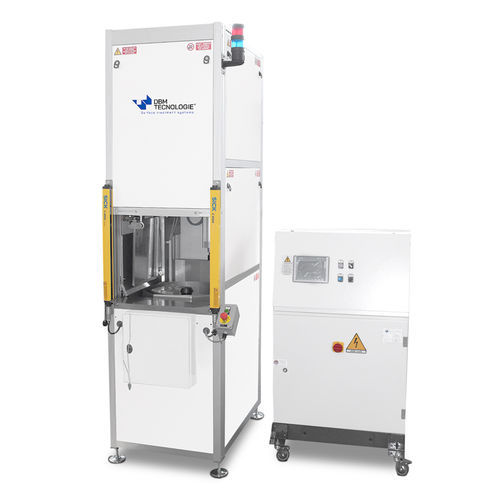

Oil bath coating application system OC

automaticimmersion

Immersion oiling for effective, long-lasting protection The OC Model immersion oiling system is designed to ensure a long protection period for oxidisable workpieces by applying an oily protective coating on them. The presence of a centrifuge system enables the elimination of liquid residues and its complete distribution on the surface of the workpiece. The treatment involves 4 different steps : - Workpiece loading by operator or robot system. It is possible to equip the system with automatic inserters. - Oil immersion phase - Centrifugal phase. - Workpiece unloading. It is possible to separate the unloading position from the loading position and equip it with an automatic unloading system. Lasting protection against oxidation Distribution over the entire surface of the workpiece Final result without residues
