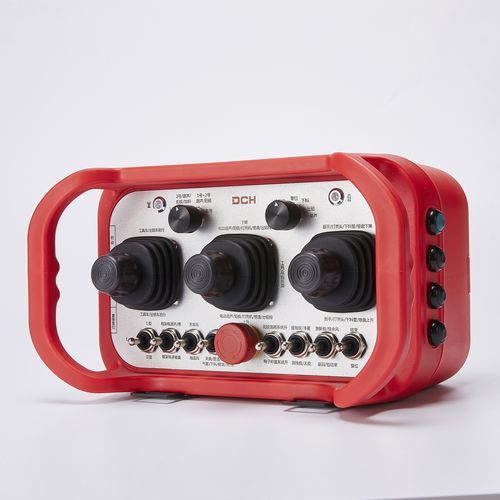

Wireless remote control DCH-M24 series

with configurable buttonsjoystickwith toggle switch

Transmitter-Shoulder belt M24 series Standard Features: Lightweight & Sturdy Competitively Priced Easily Operate Intelligence DCH iKey Compact&Robust Customized to Application Typical applications: Industrial Cranes Truck Mounted Crane Crawler Cranes Tunneling Machinery Construction Machinery Tower Crane Mobile AGV Concrete Pump Truck Crawler Crane Excavator Drilling Machinery Robot Dimensions: 260mm*160mm*100mm Weight: 1200g-2000g Antenna: internal or external Start mode: press start button Emergency stop: Mushroom, complying with EN13849-1 standard Enclosure material ：PA6+30%GF Protection degree： IP65(Enclosure type 4) Approximately operating range: 100m(328ft) Temperature range： -25℃~+70℃ (-13F to +158F) Humidity range: 0 - 97% maximum non-condensing Center frequency range: 433-434mhz; Response time:100ms Power (RF Output): 10mW(e.r.p) Baud rate: 9600Kbps Control Options: up to 42 digital outputs+up to 8 analog outputs (dual axis joysticks (4 Max.); single axis lever joystick (max.8) or potentiometer(max.8)). Power supply:8.4vdc 2500mah rechargeable Li-iron battery Operating time: 24 hours after fully charged Battery charging time: 3-4 hours Accessories: neck belt+customer logo option+custom housing colour optional LED indicator: operation indication / fault status / battery power status Apo (automatic shutdown): 0-30 minutes (adjustable) Safety: Active and passive Stop function,Parity & Checksum Function Configuration: DCH-M2400 - Total 24 DO options DCH-M2402 - Total 24 DO and 2 AO options(level joystick, cross joystick or potentiometer, etc.) DCH-M2404 - Total 24 DO and 4 AO options DCH-M2406 - Total 24 DO and 6 AO options DCH-M2408 - Total 24 DO and 8 AO options
