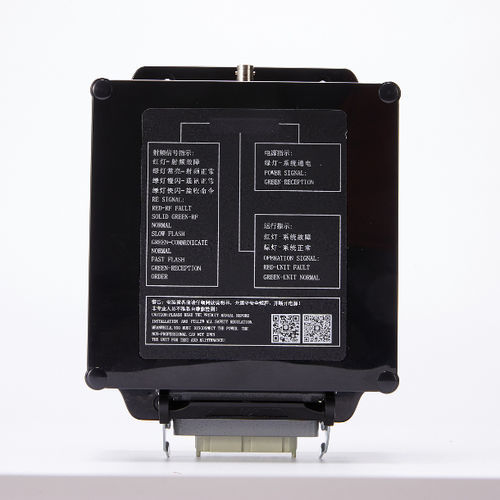

Remote control receiver DCH-P series

UHFwith relay outputIP65

Receiver-P series Typical Applications: Construction Equipment Concrete Pumps Truck mounted crane Elevated Work Platforms Hydraulic equipment Other applications Standard Features: Fully programmable via H-Link Built-in Quick Disconnect Connector Quick Set Programming of proportional outputs via buttons on receiver Half and Full Duplex feedback Multiple input and output configurations available Easily setting on climbing time Technical specifications: Size:160 ×160 × 90mm(P14);Size: 265 × 215 × 75mm(P28) Weight: 1200-1800g (depending on the accessories, this is the approximate weight) Antenna: external (standard 3m TNC external antenna) Housing material:PA6+30%GF Protection grade:IP65 Temperature range：-25℃~+70℃ (-13F to +158F) Humidity range:0-97% maximum non-condensing Center frequency range:433-434mhz Baud Rate: 9600bps Rubber vibration:4 shock pads Output: P14:up to 8 PWM outputs (or AO outputs) +14 relays+2 emergency stop relay outputs P28:up to 8 PWM outputs (or AO outputs) +28 relays+2 emergency stop relay outputs PWM duty cycle adjustment: adjust the output current by receiver top housing switch and indicator light on the panel, which is convenient and reliable LED indicator:operation status indication / RF signal indication / power supply indication Output options: connector, cable optional Safety:Active and passive Stop function,Parity & Checksum Response time:less than 100ms Adaptable transmitter: all series shoulder belt transmitters Power supply options: 9-36vdc or 30-420vac; PWM max current: 2000ma Adjust range: 0-100% Proportional output AO output options:0-5v;0-10v;0-20v;4-20ma Danfoss PVG valve control: 25%-50%-75% Proportional output
