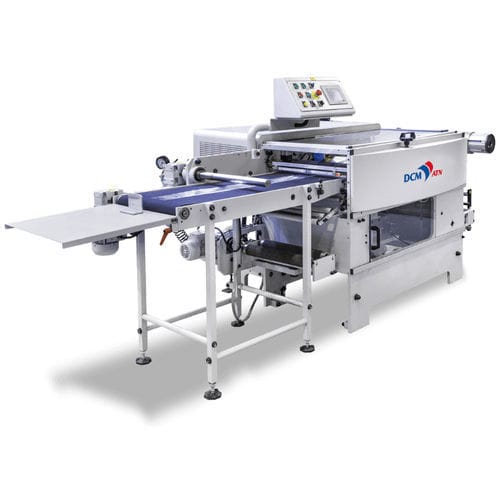

Perforation cutting machine SLEEVECUThorizontal bladefor plasticsfor paper
Add to favorites
Compare this product
Characteristics
- Technology
- horizontal blade
- Material
- for plastics, for paper, for labels
- Product handled
- for thermo-shrinkable sleeve
- Associated function
- forming, unwinding, rolling, winding, perforation, rewinding
- Applications
- for industrial applications, for the food industry, for the pharmaceutical industry
- Workpiece loading
- with automated loading
- Other characteristics
- automatic, precision
Description
Perforating and cutting or rewinding of shrinkable sleeves or paper labels.
The SLEEVECUT is a finishing machine primarily dedicated to shrink sleeve labels to perform the following operations :
- sheet sleeves,
- perforate (registered cross and "T" perforation) and sheet sleeves,
- perforate and rewind (with optional rewinder) sleeves,
- sheet paper labels,
- sheet PSL on liner.
TECHNICAL DATA
• Maximum web or sleeve width : 400mm
• Maximum unwind diameter : 610mm
• Maximum rewind diameter : 610mm
• Productivity : up to 400c/min
• Cut format : 25 - 400mm (10 - 1000mm upon request)
• Adjustable cut
• Cross and T flat perforation
• Adjustable precut tools
• Perforation in register for air evacuation
• Shingled cut pieces delivery on a belt
• Unwind station with adjustable oscillation unit
APPLICATIONS
• Shrinkable sleeves
• and self-adhesive label
MATERIALS
• Film
• Paper
