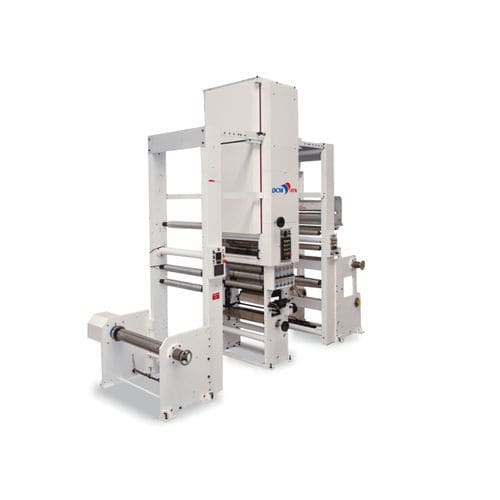

Rotogravure laminator BIVALAM

coldhotcompact

The BIVALAM is an autonomous module of rotogravure coating. The BIVALAM is designed for registeredpatterned cold seal or hot seal coating,and/or lamination with water or solvent base glues. TECHNICAL DATA • Web width : 680 - 820mm • Print repeat : from 300 to 600mm • or 350 to 800mm • Maximum unwind & rewind diameter : 800mm • Maximum production speed : 300m/min MACHINE DESCRIPTION • Rotogravure coating with shaftless cylinders • Vertical dryers, 2 doors, length = 3m, 4,5m or 6m with one or two heating zones • Insetting device for coating in register • Unwinder and rewinder superimposed APPLICATIONS • Food and hygienic packaging • dry groceries (chocolate bars, cereals) • yogurt cup lid • aluminum for pharmaceutical blister • complex label • complex film for sterilized products MATERIALS • Paper • Aluminium • OPP, PET, CPP, PE, OPA • Metallic film
