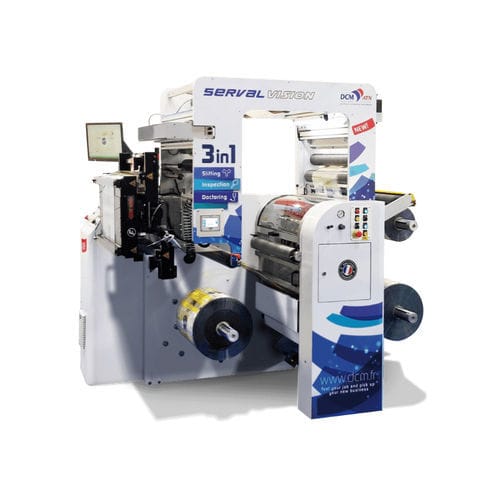

Inspection slitter-rewinder SERVAL VISION
for aluminum foilfor plastic filmsfor paper

inspection slitter-rewinder
inspection slitter-rewinder
Add to favorites
Compare this product


Transformed product
for paper, for plastic films, for aluminum foil
for the packaging industry, inspection, monitoring
Working width

820 mm
(32 in)


500,000 mm/min
(328 in/s)


Multi-tasks inspection/doctoring slitter rewinder. Worldwide Innovation, the SERVAL VISION combines 3 features : - slitter - inspection - dual ways inspection and doctoring of reels TECHNICAL DATA • Mother reel maximum width : 820mm • Mother reel maximum weight : 350/500kg • Mother reel maximum diameter : 610/810mm • Standard minimum slit : 25mm (other on request) • Rewinding reel maximum diameter : 610mm • Maximum production speed : 500m/min Options : - 100% camera - Stroboscope - Marking/labeling • Double web guide, double way operation for monitoring and doctoring • Razor blades/circular knives/ pneumatic knives • Manual cantilevered unloading • 3 motors • Automatic web tension control APPLICATIONS • Mother reels and rewinded reels • Packaging • Labels MATERIALS • Film • Paper • Aluminium • Cardboard • Laminates
