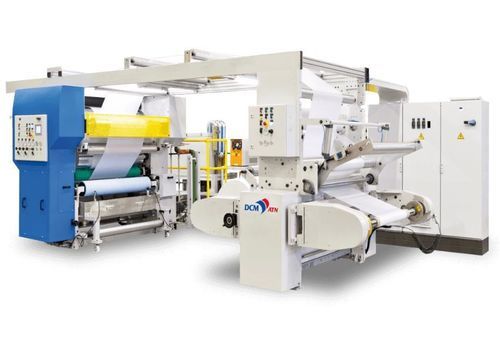

Hot-melt coating and waxing machine LAMINAWAX

paraffiningwaxfor paper

The LAMINAWAX is designed for paraffin and hotmelt coating or wax lamination. Its modular design makes the machine adaptable to different markets. TECHNICAL DATA - Web width: from 800 to 1300mm - Coating weight: from 4 to 25g/m² - Reels diameter: from 1000 to 1500mm - Maximum production speed: 300m/min MACHINE DESCRIPTION - Semi-flexo or rotogravure coating - Pre-heat trays 450 or 900L with continuous flow to heated trays - 4 independent AC motors for the coating station - Autonomous heating system with thermofluid, up to 200°C - 3 chilling rollers with water circulation - Simple or non-stop unwind and rewind - Lamination 100%, over strip, under strip APPLICATIONS - Food and hygienic packaging - Dry groceries (candies, chocolate) - Chewing gum - Butter, cheese - Soap - Yogurt cup banderole MATERIALS - Paper from 17 gr/m² - Aluminum from 7µ - OPP, PVC, PET or PS from 20µ
