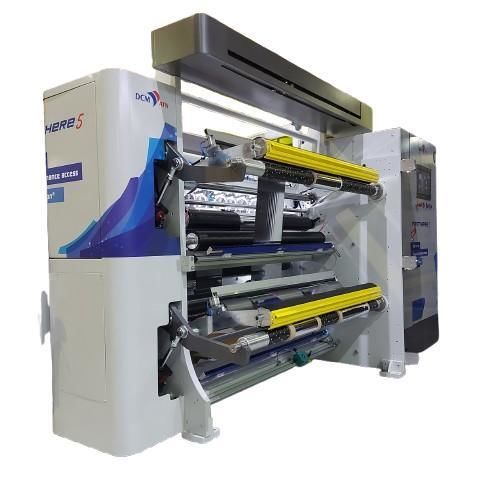

Automatic slitter-rewinder PANTHERE
compacthigh-speedmodular

Automatic slitter-rewinder - PANTHERE - DCM ATN - compact / high-speed / modular
Automatic slitter-rewinder - PANTHERE - DCM ATN - compact / high-speed / modular
Add to favorites
Compare this product
Go to the DCM ATN website for more information

Characteristics

Options
automatic, compact, high-speed, modular, double, high-productivity, for small rolls, with two rewinding shafts, multi-purpose, for medium web
Transformed product
for paper, for plastic films, for aluminum foil, for adhesive tape, for stretch film, hot-stamping foil
Domain
roller, for the packaging industry, semi-automatic, for the cosmetics industry, industrial, fast, for laser applications, for cables, for the paper industry, for hygienic applications, for the food industry, automation, for the paper industry, for the electronics industry, for the plastics industry, cost-effective, multiple, for medical applications, for the printing industry, for the automotive industry
Working width

1,000 mm, 1,400 mm, 1,600 mm
(39 in, 55 in, 63 in)

Speed

600 m/min, 800 m/min

Description

Compact slitter-rewinder with two rewinding shafts. The PANTHERE slitter-rewinder is our best seller.It is well-known worldwide for its easy set up,high productivity, modular configuration, and rewinding a diameter of 800mm. TECHNICAL DATA • Mother reel maximum weight : UP to 3000kg • Mother reel maximum diameter : 1000 - 1300 - 1500 - 1800mm • Minimum standard slit : 20mm other sizes on request) • Rewinding reel maximum diameter : 800/1000mm • Shafted or shaftless unwinder • Integrated or separated unwinder • Razor blades/circular knives/pneumatic knives • 2 pneumatic or differential rewinding shafts • Manual or automatic unloading • 3 or 4 motors APPLICATIONS • Bags • Food packaging • Paper straw • Outer packing • Mineral water labelling (wrap around) • Aluminum cover for pharmaceuticals • Thermoforming MATERIALS • PE • Aluminium • Papers • Laminates

VIDEO
