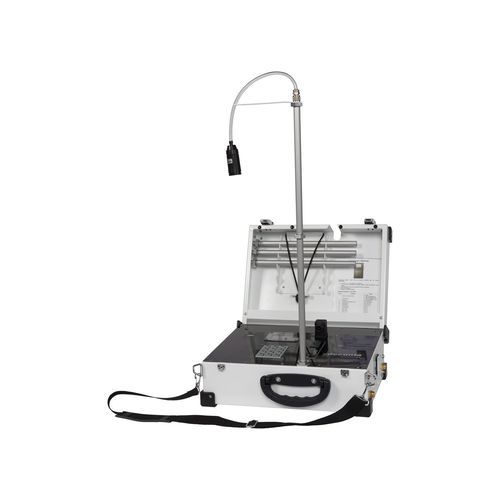

Stainless steel air sampler

The Air sampling device airsampler serves to draw in a defined volume flow through an air sampling filter. The filters are analysed in a laboratory. The permanent regulation of volume flow, as well as calibrated sensors and a laminar element flow constitutes the basis for a precise measuring. The airsampler measures: volume flow, temperature, relative humidity and absolute pressure. In case of power failure, the lost measuring time will be made up for. A dry contact enables the connection of external alarm transmitter or a mobile phone. The alarm is triggered depending on preset adjustments, in case of power failure or at the end of the measuring. The airsampler combines simple handling and high technical standard, which makes it a powerful measuring instrument that fulfils all requirements in regard to mobile and stationary air flow measurements. Suitcase with shoulder strap Connection rods Instruction manual Memory module Mobile phone Length: 430 mm Width: 325 mm Height: 165 mm Weight: 10,5 kg Power connection: 230 V Switched power: dry contact 230 V / 1,5 A Measuring connections: Rods with tube 8 x 1 mm Volume flow 15 S: 2 - 15 l/min Volume flow 30 S: 4 - 30 l/min Max. negative pressure: 500 mbar Capacity of memory: via optional module Operation: LCD- Display, Keypad Temperature range: 0 - 45°C Temperature range: 0 – 45 °C
