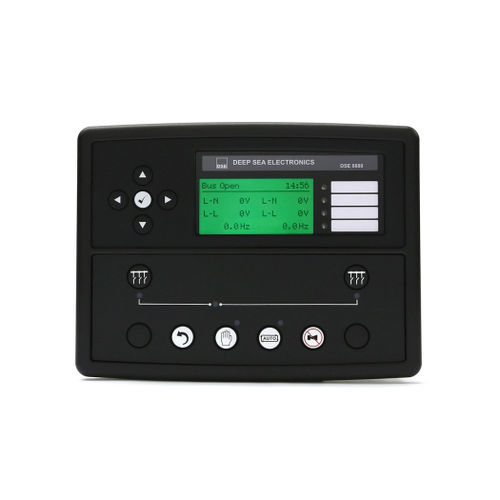

RS485 control module DSE8680

The DSE8680 is an intelligent control module designed to control a generator bus-tie breaker. The control module features technology that automatically manages the synchronising and check-sync across the breaker using the DSE multi-set communications (MSC) link when opening and closing the bus-tie breaker. To view UL Certification click here. OVERALL SIZE 240 mm x 181 mm x 42 mm (9.4” x 6.8” x 1.6”) PANEL CUTOUT SIZE 220 mm x 160 mm (8.7" x 6.3") MAXIMUM PANEL THICKNESS 8.0 mm (0.3”) WEIGHT 0.86kg PRODUCT VARIANTS 8680-01 - 8680 Synchronising Generator Bus Tie Control Module Product Highlights Key Features Key Benefits Connects to two DSE MSC links (Bus 1 & Bus 2). Provides excellent system flexibility. Automatic control of the DSE MSC link. Provides control when the breaker is opened or closed for synchronising. Up to 2 8680’s are supported when one to fourteen 8x60’s are in the system. This provides a fully integrated standalone solution without the need for an external PLC. Configurable inputs/outputs (11/8). Provides multiple installation options. Remote communications (RS232, RS485 x2, Ethernet). Provides secure and simple off site monitoring. All ports are continuously active. Configurable event log (250). Provides access to historical alarms and operational status. Integral PLC editor. Ensures additional applications are easily integrated into the system. Data logging (USB Memory Stick). Provides current and historical status information. DSE Configuration Suite PC Software. Provides complete user-friendly configuration and easy-to-use high-level system control & monitoring.
