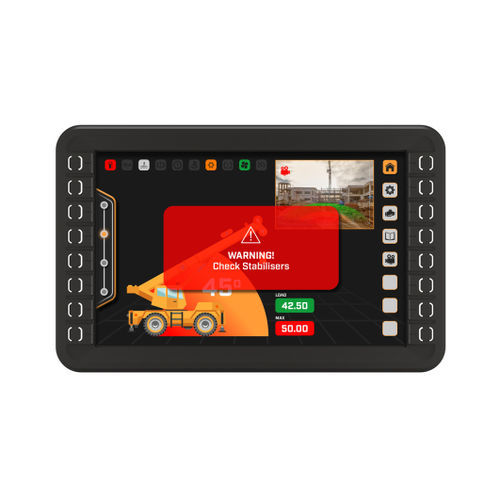

TFT display DSEM812

color1280 x 80012"

The DSEM812 is a 12" Programmable Display designed for use on vehicles and off highway machinery and is the largest display in DSE's programmable display range. Developed for use as a standalone product or with the DSEM64x programmable controllers, the DSEM812 provides users with outstanding flexibility. The M812 is configured using CODESYS 3.5 or Qt, can be RAM or panel mounted and has the option to use in portrait or landscape orientation. OVERALL SIZE 330 mm x 210 mm x 63.5 mm (12.99” x 8.26” x 2.5”) WEIGHT 2.12 kg PRODUCT VARIANTS M812-01 - CODESYS (Keyed) M812-03 - Qt (Keyed) Product Highlights Key Features Key Benefits Robust HMI/programmable display specifically designed for mobile applications. Developed to withstand the toughest environments. Optically bonded 12.1 inch TFT, 1280 x 800, 16:10 resolution colour. Delivers excellent clarity in high humidity environments. Capacitive touch with glove support. Allows operators to use the display without having to remove gloves. Two variants, one with 16 keys with configurable colour backlight and touchscreen and one with touchscreen and no keys. Users can choose the display most suited to their operating environment. iMx6 quad processor. Provides ultra-fast response times. 16 GB flash / 2 GB RAM. Allows large files to be stored and accessed quickly. Wake-up providing fast boot functionality. Reduces the time it takes for the display to wake-up. USB host connections. Accepts multiple device connections. 4 analogue composite video camera support (PAL/NTSC). Provides high-level camera support. 3 independent CAN interfaces. Each configurable as J1939, CANopen or RAW CAN. Provides flexible CAN communications options.
