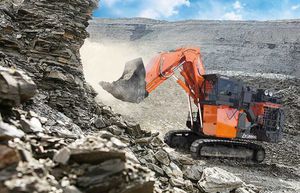

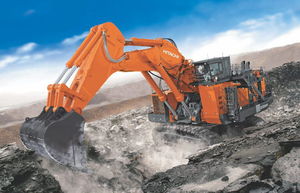

Large excavator EX3600-7
crawlerTier 4 - finalmining and quarrying

large excavator
large excavator
large excavator
large excavator
large excavator
large excavator
large excavator
large excavator
large excavator
large excavator
large excavator
large excavator
large excavator
large excavator
Add to favorites
Compare this product

Characteristics

Size
large
Locomotion
crawler
Engine type
Tier 4 - final
Applications
mining and quarrying
Operating weight

Min.: 369 t (406.8 us ton)

Max.: 370 t (407.9 us ton)

Engine power

1,450 kW (1,971.45 hp)

Description

EX3600-7 MINING EXCAVATOR & SHOVEL Net Power 1,450 kW 1,944 hp Operating Weight Backhoe 370 000 kg 815,710 lb. Shovel 369 000 kg 813,506 lb. Max Dig Reach Backhoe 18.24 m 59 ft. 10 in. Shovel 15.66 m 51 ft. 5 in. Max Dig Depth Backhoe 8.63 m 28 ft. 4 in. Shovel 4.35 m 14 ft. 3 in. BUILT TO OUTWORK AND OUTLAST The EX3600-7 delivers uncompromised efficiency and productivity. The machine features the latest advancements in engine and fuel optimization technologies to provide you with efficiency, reliability and durability in the toughest mines. Available as a backhoe or shovel (with a Cummins or MTU engine*), the EX3600-7 reduces fuel consumption by 4 percent, compared to the previous Dash-6 model with Cummins engine configuration. Plus, it features enhanced safety and features like an improved hydraulic system and simplified maintenance. The EX3600-7 comes standard equipped with Hitachi’s Global e-Service remote machine management system, which gives you access to each on-site machine from a PC in your office. Choice of Cummins or MTU engine in Final Tier 4 (FT4) or Fuel Calibration Optimized (FCO) configurations. Fuel Consumption Optimization (FCO) technologies and hydraulic system improvements reduce fuel consumption by 4 percent versus the EX3600-6 with Cummins engine configuration.
