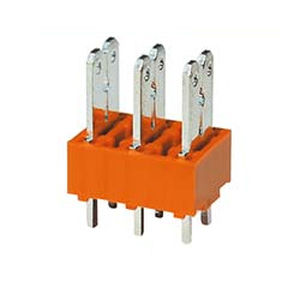

Printed circuit board terminal block DG140V-5.0screw connectionbipolar
Add to favorites
Compare this product
Characteristics
- Mounting
- for printed circuit boards
- Connection
- screw connection
- Other characteristics
- bipolar
- Cross-section
Min.: 0.5 mm²
(0 in²)Max.: 2.5 mm²
(0 in²)- Current
15 A, 24 A
- Nominal voltage
300 V
Description
Electrical
Standard
UL
IEC
Wire range
26-14AWG
0.5-2.5mm2
Withstanding voltage
4KV
Dimensions
Pitch
5.0mm(.197")
Poles
2P-19P
Material
Housing
PA66,UL94V-0
Pin header
Copper,Tin plated
Wire guard
Stainless steel
