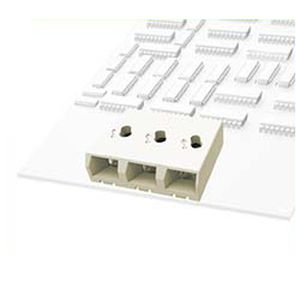

Printed circuit board terminal block DG2001-3.0springtripolarsingle-pole
Add to favorites
Compare this product
Characteristics
- Mounting
- for printed circuit boards
- Connection
- spring
- Other characteristics
- tripolar, single-pole
- Cross-section
Max.: 0.34 mm²
(0 in²)Min.: 0.14 mm²
(0 in²)- Current
3 A
- Nominal voltage
160 V, 250 V
Description
Electrical
Standard
UL
IEC
Wire range
26-22AWG
0.14-0.34mm2
Rated suruge voltage
2.5KV
Mechanical
Ambient temperature
-40°C~+105°C
Strip length
9mm
Dimensions
Pitch
3.0mm(.118")
Poles
1P-03P
Material
Housing
LCP,UL94V-0
Pin header
Copper,Tin plated
Wire guard
Stainless steel
