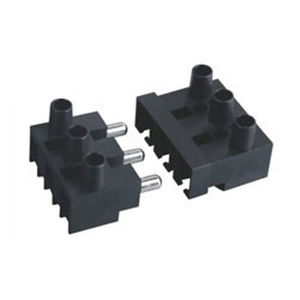

Bipolar terminal block DG280
feed-through

bipolar terminal block
bipolar terminal block
Add to favorites
Compare this product


Characteristics

Other characteristics
bipolar, feed-through
Cross-section

Min.: 0.5 mm²
(0 in²)

Max.: 2.5 mm²
(0 in²)

Current

20 A, 24 A

Nominal voltage

450 V, 600 V

Description

Electrical Standard UL IEC Wire range 22-12AWG 0.5~2.5mm2 Withstanding voltage AC2500V/1Min Mechanical Torque M3/5.1Nm Ambient temperature -40°C~+105°C Strip length 7-8mm Dimensions Pitch 10mm(.394") Poles 2-4P Material Housing PA66,UL94V-2 Current carrier Brass,Ni plated
