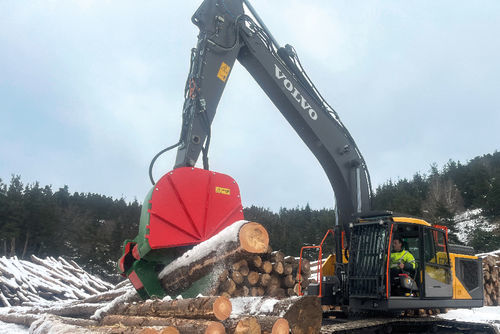

Log grapple GSC60-80

Optimize your logyard management operations with our innovative grapple saw, specially designed for optimum economic efficiency since it doesn't require the construction of heavy structures. - Robust and versatile: Equip your hydraulic excavator (20 to 35T) with the grapple saw for tight grip and easy handling of logs. Facilitate operations such as unloading trucks, picking up logs from the middle of the pile, accurately sorting logs by length and diameter, and quickly loading decks. - Intelligent clamping pressure: The clamping pressure automatically adjusts according to the diameter of the wood, guaranteeing gentle handling while preserving the integrity of the material. - Precise, efficient cutting: Incorporating a high-velocity Harvester saw, our grapple saw ensures precise, optimised cuts for logs up to 80 cm in diameter. Mechanical pump lubrication and an automatic tensioning system ensure consistent performance. A second saw enables fully automated cutting of off-cuts. The circular saw cuts logs of up to 45 cm at a very high rate. - Danfoss PLC: Enjoy total control with the Danfoss PLC. Combining ease of use and robustness, it monitors and regulates lengths, diameters and volume with exceptional precision. - Precise measurements: Length is determined by a pressure roller that can be adjusted to suit each tree. Diameter, meanwhile, is determined by measuring five contact points, guaranteeing precise measurement. - Customization options: For maximum versatility, opt for our optional second state-of-the-art saw, designed specifically for off-cuts. Technical Specifications - Mechanical strength: Imex 700 steel from 6 to 30 mm thick - Cutting diameter: From 80 to 800 mm - Cutting system: GS double chain grapple saw with 404 18H chain (up to 800 mm diameter) and circular saw with 1,100 mm carbide-tipped blade (up to 450 mm diameter) - Hydraulic motor: 19 cm³ axial pistons for double chainsaws and 80 cm³ for circular saws - Power requirements: Hydraulic excavator from 20 to 35T - Wood holding system: Hydraulic grippers and drive via 5 motorised rollers - Wood travel speed: Up to 4m/s - Wood positioning: At the right automatic length - Diameter measurement: Automatic - Options: Transmission of volume data
