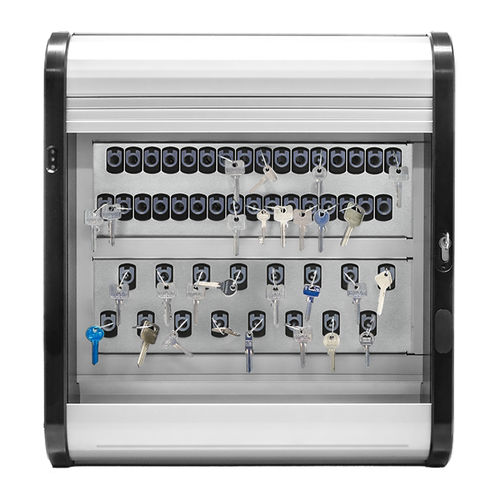

Walled key box maxx 6U

The maxx 6U cabinet is a compact key management system with an elegant design. Its high quality mix of materials make it ideal to be installed in a foyer where design matters. On the other hand, the automatic roller shutter requires much less space compared to an ordinary door which makes access to the cabinet easier in locations with limited space, e.g., a narrow corridor.Furthermore, the automatic rollers shutter prevents human error since it will automatically close after a certain time so that the cabinet cannot accidentally be left open. The maxx 6U offers space for 2 panels which provides flexibility to equip the maxx with the panels to meet your needs. Your benefits at a glance: Zero-maintenance RFID technology Compact and elegant design Automatic roller shutter Flexible, modular design with 2 positions for panels Emergency opening in case of power failure Standalone mode in case of network errors Technical data Dimensions WxHxD / weight: 545 x 600 x 210 mm / 28 kg Housing material: Sheet steel, powder coated, ASA, PC Colour: Similar to RAL 9006 Operating temperature: +5...+50°C Relative humidity: 5…95%, non-condensing Power requirement: 110...240 VAC keyTag frequency: 125 kHz Door options: Metal door with viewing window Back-up battery: 12 VDC / 2.3 Ah Isolated contacts: 4x 30 VDC / 1 A for up to 16 alarms Available panels: 32 DD: 32 slots 16 SD: 16 slots 16 DD: 16 slots 8 SD: 8 slots
