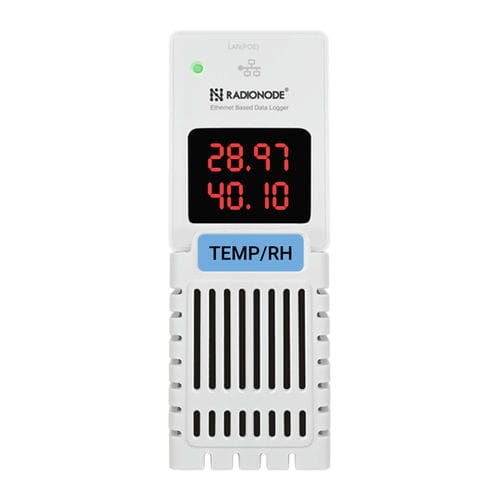

Digital multi-parameter transmitter RN171plus

PoELAN

Network is the default these days, RN171plus Sensor data measured with UA, where do you want to send it? Various USB type UA sensors can be attached and detached UA1X: temperature and humidity, high temperature, low temperature, ultra low temperature UA2X: 4-20mA, 0-20mA, 0-1V UA5X: Gas sensors (VOC, O2, CO2, CO, SO2, NO2, NH3, H2S, EO, H2) 48V PoE Ethernet connection IEEE 802.3af Data transmission through HTTP, MODBUS TCP, Telnet Front 2-channel LED display / built-in buzzer Easy sensor calibration and replacement by attaching and detaching USB · Cloud-based text transmission, phone transmission, and email report transmission · Radionode365 Cloud Serivce monitoring service support · Tapaculo Lite PC type software support Replaceable sensor support RN171plus product is a data transmitter developed to easily build a sensor monitoring system using a general-purpose communication network. In order to support various sensors, the sensor part is in the form of a USB and has been developed for the user to select. Popular IoT, digital data transmission The physical communication method supports Ethernet. In addition, by supporting various protocols such as MODBUS-TCP, HTTP, Telnet, etc., it is possible to construct a sensor monitoring system very conveniently even in a facility with a general-purpose network.
