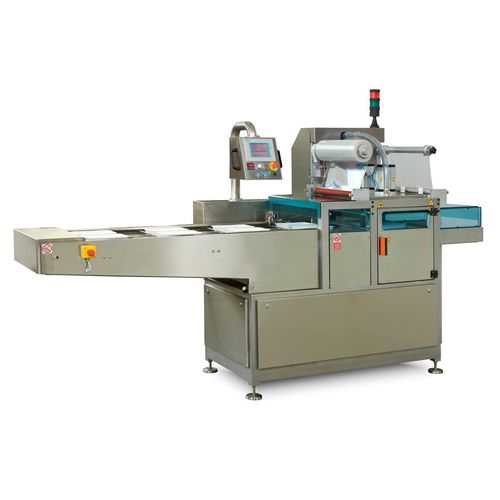

Linear array tray sealing machine BRAVO 150

automaticcompact

The best solution for the packaging of preformed trays Automatic machine, very compact, realized on stainless steel and anodized aluminum and with high quality material and components. Knee lever system for the bottom chamber movement to guarantee an excellent welding on all packaging types and then an optimal sealing. It is distinguished by the easy and quick way to change the mould, less than five minutes. It’s very versatile, it can be equipped with customized dosing systems, de-nesters, photocells for print registration, etc. Technical data: • Structure: AISI 304 stainless steel and anodised aluminium frame • Machine dimensions: 3020x1050x2000 h • Control panel: PLC touch screen panel Siemens • Voltage: 380 V 50 Hz • Power: 2.5 Kw • Weight: 620 kg • 100 mc pump (only vacuum+gas version) • Pneumatic feeding: 6 bar • Protection class: IP 65 • Compressed air • Max film dimensions: 500 mm • Sealing area dimensions: 400x300 mm • Max trays height: 100 mm Vacuum/Gas – 35/40 mm Skinpack • Output (according to product): up to 10 cycles/min (only sealing) and up to 6 cycles/min (vacuum gas) • Trays advancement by Brushless motor • Loading site with rods belt • Discharge of packed trays with stainless steel rollers • Easy change of mould • Output: from 400 to 2880 trays/hour
