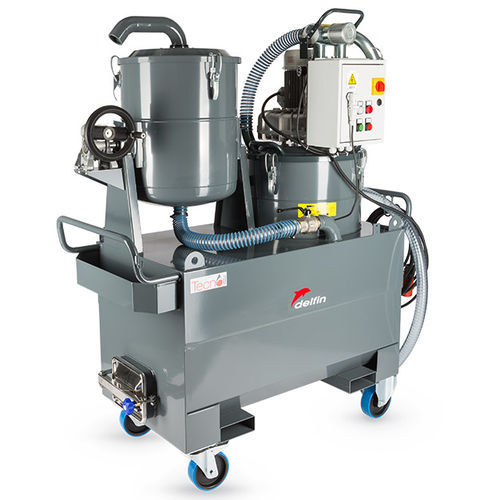

Industrial vacuum cleaner TC400 IF

oil and chipthree-phasestainless steel

INDUSTRIAL VACUUM CLEANER FOR EMPTYING TANKS AND RESERVOIRS The TC400 IF is a three-phase turbine vacuum cleaner with a large liquid collection capacity, designed to make extracting and separating chips and lubricating oils in tanks and reservoirs easier, particularly in heavy and continuous applications. The vacuum cleaner can recover and filter up to 400 litres of oil mixed with metal chips, and features an automatic stop for when the container is full. The filtered oils can be drained quickly using a system of reversed airflow (150 l/min) or (optionally) via a separate pump (300 l/min), while the chips are discharged using a tilting hopper with reduction gear. ADVANTAGES - Side channel blower motor , powerful and silent, totally maintenance free, suitable for continuous duty - Complete steel construction - Vacuum gauge to detect filter clogging - PPL filter for chips separation - Discharge hose for liquids - Fork lift intakes includedSaving while recovering, filtrating and reusing cutting oil and emulsion - Suction from machine tools of oils and coolants mixed with metal chips - Discharge system through reverse flow by means of an hose. No need of discharge pump - Discharge pump included
