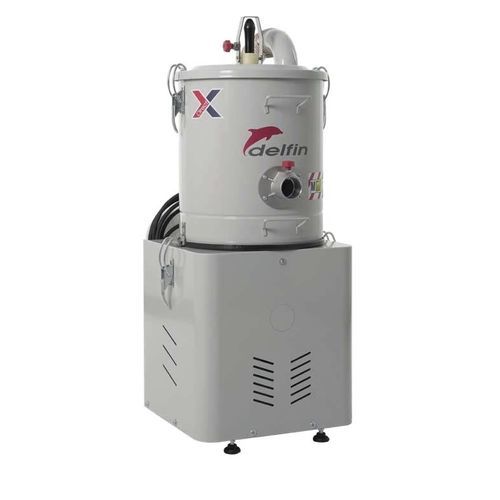

Industrial vacuum cleaner DBFV 20-30 Z22drydustelectric
Add to favorites
Compare this product
Characteristics
- Domain
- industrial
- Type
- dry
- Substance vacuumed
- dust
- Power source
- electric
- Configuration
- stationary
- Number of motors
- 3-motor
- Container type
- stainless steel
- Other characteristics
- compact, with HEPA filter
- Applications
- for the food industry
- Power
Min.: 2.2 kW
Max.: 4.6 kW
- Capacity
25 l
(6.6043 gal)- Air flow
270 m³/h, 318 m³/h
(9,535 ft³/h, 11,230.1 ft³/h)- Vacuum
254 mbar, 294 mbar
(4 psi, 4 psi)- Noise level
65 dB, 70 dB
- Weight
45 kg, 60 kg
(99.21 lb, 132.28 lb)- Height
103 cm
(41 in)- Length
54 cm
(21.3 in)- Width
55 cm
(21.7 in)
Description
The fixed extraction unit for machinery is designed for direct extraction of dust and fumes during production. With a compact and vertical construction, it is made of steel to ensure robustness and long-lasting durability. The M-class filter with manual cleaning system and H14 ensures effective dust separation. Equipped with a maintenance-free motor and modularity, it is ideal for 24/7 applications and integration into OEM machinery and production lines. The side channel blower and Ex-certified control box provide safety in environments with explosive dust risks. An excellent solution for continuous and efficient extraction.
Catalogs
No catalogs are available for this product.
See all of Delfin Vacuums‘s catalogsOther Delfin Vacuums products
VACUUMS FOR ATEX CERTIFIED ZONES
