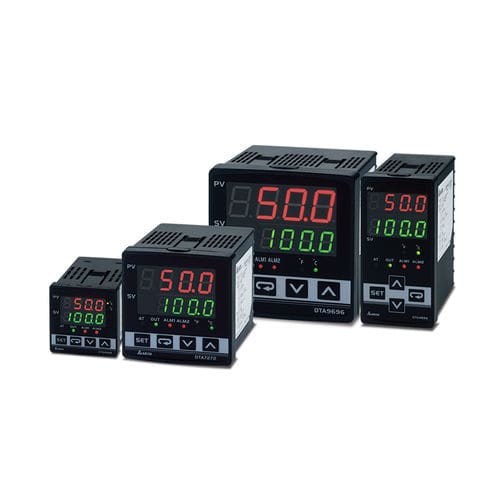

Digital temperature regulator DTA

PIDULindustrial

The DTA series is designed for practical applications with the 3 signal outputs most-commonly used in industry. It is equipped with various useful functions and a transmission structure which ensures fast and stable transmission of data. Applications Blower coil pipe in central air-conditioning system, heating system. Specifications PID / On-Off/ manual input control modes Auto-tuning PID parameters Various thermocouple (B, E, J, K, L, N, R, S, T, U, TXK) and platinum RTD (PT100, JPT100) can be set by parameters Built-in 2 groups of alarm switches with 13 alarm modes each Celsius or Fahrenheit temperature display 2 key lock functions: (1. lock all keys; 2. lock only function key, up/down keys are still workable) Panel size: 4848, 4896, 9648, 7272, 9696 Optional RS-485 communication interface (Modbus ASCII, RTU, baud rate: 2,400 ~ 38,400) Optional CT (wire breaking detection) function, an alarm output Sampling time of sensor: 0.5 second/time Certifications: IP5X protection, CE, UL
