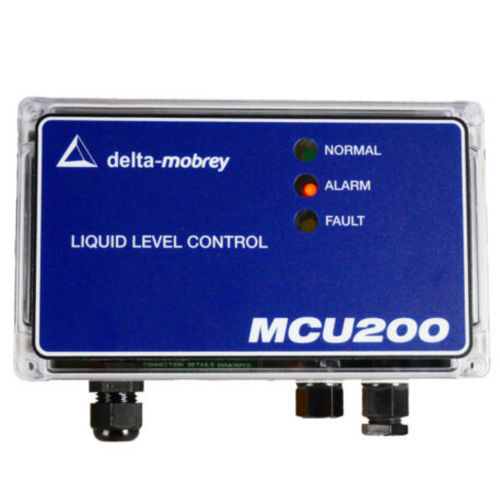

Automatic control unit MCU200 series

The MCU controller and gap sensor when used together provide an ultrasonic point level liquid switch. Typical applications include sludge blanket level detection in settlement tanks, interface detection for immiscible liquids and contamination detection, such as oil in water or water in oil. The MCU201 and MCU203 control units provide simple and economical control electronics for wall-mounting near a tank or pipeline containing a single ultrasonic gap sensor. The sensors operate on the attenuation of an ultrasonic signal through the fluid. View our webinar featuring the MCU200. FEATURES & BENEFITS Wall-mounting IP65 polycarbonate enclosure DPDT relay output for wet-to-dry or dry-to-wet changeover indication, external control, or alarm condition indication. Accepts a voltage-free contact input e.g. to actuate a pump control function via the output DPDT relay Three LED indicators – Normal, Alarm, and Fault Selectable time delay (0.5, 2, 8 or 30 seconds) for wet-to-dry or dry-to-wet changeover Continuous cable check between controller and Mobrey 400SD Point Level Detector Choice of sensors for use in tanks and pipelines
