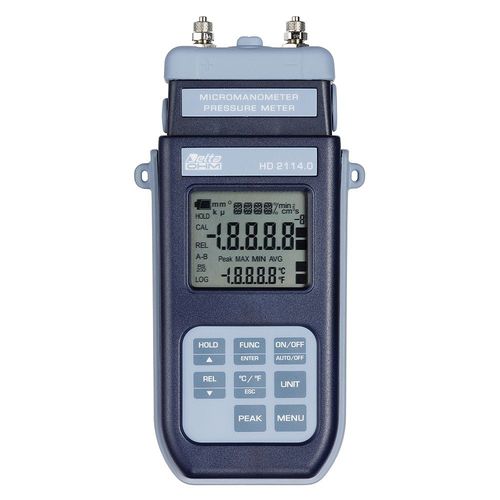

Digital pressure gauge HD2114 series

differentialabsoluterelative

Portable pressure micromanometer thermometer with 20 mbar built-in sensor. It measures absolute, relative and differential pressure, as well as temperature. Pressure is measured using an internal module which is differential with respect to the atmosphere with fixed full scale. With the PP471 module acting as an interface, the instrument can use all the TP704 and TP705 probes series to perform the measurements. Temperature measurement with Pt100 probe complete with SICRAM module, measuring range -200°C +650°C. Storage of maximum, minimum, average value. Functions: REL, HOLD, PEAK (with probes TP704 or TP705) and auto power off which can be disabled, IP 66 protection degree. Supplied with carrying case, manual and 4 batteries. The SICRAM module PP471, pressure probes and temperature probes have to be ordered separately. TP704 and TP705 series pressure probes and TP47… series temperature probes are suitable. Available as well in version with data logging function HD2114.2.
