Vertical sander 31-484
electricfor woodlow-vibration

vertical sander
vertical sander
vertical sander
vertical sander
vertical sander
Add to favorites
Compare this product

Characteristics

Operation
electric
Applications
for wood
Other characteristics
low-vibration, vertical, heavy-duty, oscillating, tilting
Power

1 ch (1 hp)

Rotational speed

Max.: 1,725 rpm (10,838.5 rad.min-1)

Min.: 0 rpm (0 rad.min-1)

Description

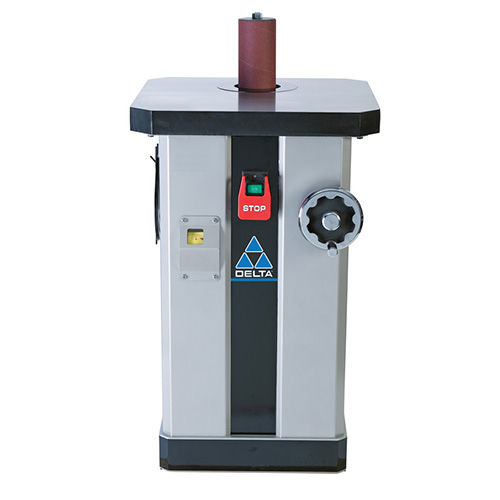

The 31-484 heavy duty oscillating floor spindle sander was designed for precision and durability. The fully enclosed heavy duty steel frame construction is optimized for dust management and keeps vibration to a minimum. The Heavy duty cast iron trunnion system supports oil bath gear box, which provides increased stability and accuracy. A unique 0° to 45° tilting spindle arbor design allows for adjusting the sanding angle to bevel sand while the table remains flat. Features • Powerful 1 HP, 110V motor with 1,725 RPM spindle speed and 71 oscillations per minute • Fully enclosed, heavy duty steel frame construction for optimum dust management and minimum vibration • 24-5/8" x 24-1/2" precision ground cast iron table • 1-1/2" oscillating action uses more of the sleeve, prolonging life of the sleeve while protecting wood from excess heat created by a fixed oscillating spindle • Unique 0° to 45° tilting spindle arbor design allows for adjusting the sanding angle to bevel sand while the table remains flat • Adjustable positive stops at 45° and 90° and large bevel scale for accuracy and convenience • Heavy duty, cast iron trunnion system supports oil bath gear box; provides increased stability and accuracy • Smooth precision ball bearings support the main spindle and heavy duty worm and gear mechanism drives the oscillations • Removable rear access panel making spindle adjustments and changes easier • Oversized cast iron, chrome polished tilt wheel with knurled lock knob
