DC servo-amplifier / brushless / 4-axis / digital
3U AMP-1

Add to MyDirectIndustry favorites
Compare this product Don’t compare this product

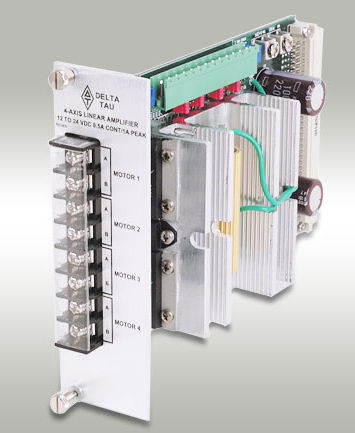

DC servo-amplifier DC servo-amplifier - 3U AMP-1
{{requestButtons}}

Characteristics

  • AC/DC:

    DC

  • Type:

    brushless

  • Number of axes:

    4-axis

  • Output signal:

    digital

  • Voltage :

    24V

  • Current:

    1 A

Description

AMP 1 is a Linear Amplifier in the 3U UMAC rack form factor designed to drive small DC brushed type motors, galvanometers, piezoelectric motors, voice coil motors, or proportional hydraulic valve actuators. This amplifier provides four 40 W continuous (60 W intermittent for 2 seconds) linear amplifiers. The Amp 1 Linear Amplifier may be interfaced conveniently to the PMAC controller via ACC-24E2A or ACC-24E3 (Power only). The maximum bus voltage for this amplifier is 24V DC and the continuous rating for each drive is 0.5 A. The amplifiers on this product will output a current or voltage that is proportional to the voltage input. The amplifier can receive its logic power supply (15 VDC) from the 3U-power supply and the bus voltage is supplied from a separate supply.

HARDWARE FEATURES
Amplifier Ratings
Output Current Ratings
0.5 A Continuous/1.0A Peak
Output Power Ratings
0.040 kW (0.0241 HP) at 24 VDC

Motor Types Supported
DC Brush
Piezoelectric
Galvanometer
Voice Coil
Hydraulic
