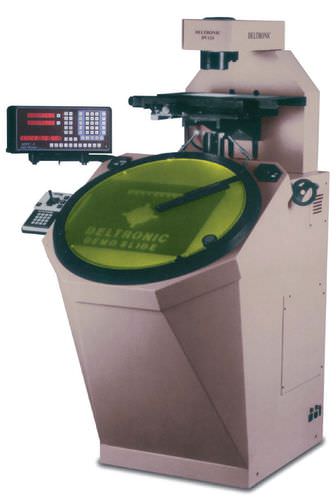

24"/600mm Vertical Profile Projector
Fully usable 24" (600mm) viewing screen with edge-to-edge accuracy of 0.05%.
4" (100mm) Y-axis x 8" (200mm) X-axis stage.
Hard anodized stage surface.
ESP™ Digital Electronic Protractor with INC/ABS switchable, displays 1' or .01 degree.
Quick-change 3-position Silo lens turret for maximum lens protection.
30 degree easy viewing screen angle.
150 watt two-position Profile illumination system.
500 watt twin Fiber-Optic surface illumination system.
Telecentric lens system
Built-in hood and curtains
Quick-release X-axis clutch for rapid stage movement, with infinite fine adjustment.
