Translation wheel block RS series
steel

translation wheel block
translation wheel block
translation wheel block
translation wheel block
translation wheel block
translation wheel block
translation wheel block
translation wheel block
translation wheel block
translation wheel block
translation wheel block
Add to favorites
Compare this product


Characteristics

Type
translation
Material
steel
Inside diameter

Max.: 400 mm
(15.75 in)

Min.: 125 mm
(4.92 in)

Description

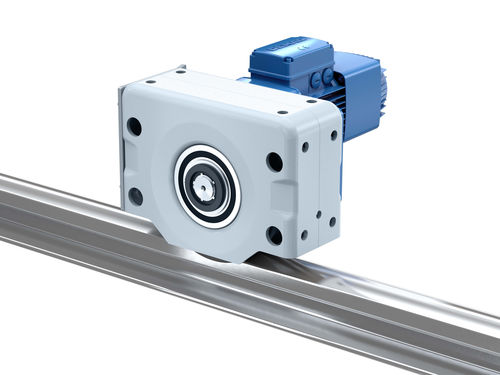

Our RS wheel block system is suitable for applications in which a housing made of sheet steel is required, such as for impact loads. The RS system is also employed in high-temperature applications up to 250 °C or wherever a stainless steel housing is needed. Various travel wheel designs and possible connections to superstructures make the system suitable for universal applications. Further strengths include: *5 sizes with load capacities from 3.5 tonnes to 18 tonnes *housing made of steel or stainless steel *many travel wheel contours as standard *4 variants for connection to the customer's superstructure *driven by Demag offset geared motors *integrated connections, e.g. for torque brackets, guide roller arrangements and buffers.
