CNC punching machine

servo-electriccuttingpunching

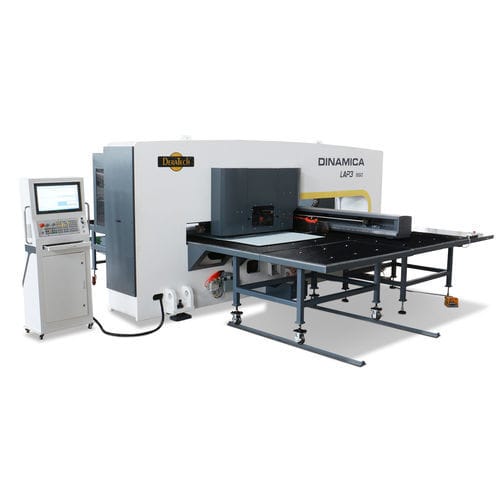

Dinamica Punch-Laser combi, a new generation of servo-electric punching technology with integrated laser cutting system. The Dinamica Punch-Laser combination machine combines laser cutting with punching technology: It offers unbeatable productivity when processing holes There is the additional flexibility of laser cutting any free-form contours Also forming operations are possible Automatic part sorting is integrated Fiber laser technology combined with servo-electric punching guarantees low electrical consumption and minimal operating costs Precitec Cutting Head IPG-Lazer LTI-motion: drives and motors DETAILED SPECIFICATIONS Technical information Fiber laser technology combined with servo electric punching Thick Turret tooling system 2 or 4 Auto Index Heavy Duty O-Frame Dynamic laser cutting axis up to 4kW by IPG Precitec cutting head Deratech User friendly HMI Part sorting drop door 500mm x 1500mm Programmable sorting conveyor Available options 2 or 4 auto Index Automatic sheet clamps Vacuum slug system Loading and unloading system Parts
