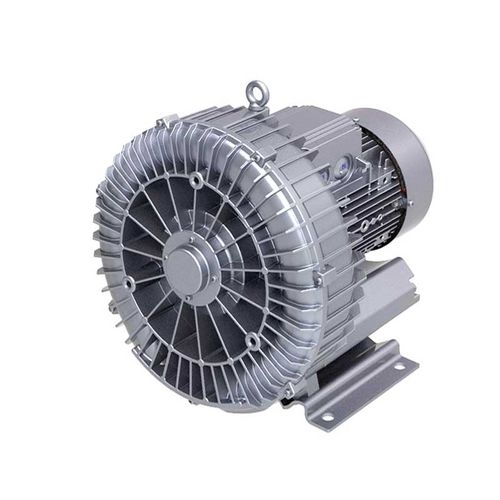

Air blower DHB 930C 18D5
side-channelsingle-stage

air blower
air blower
Add to favorites
Compare this product


Characteristics

Type
air
Technology
side-channel
Number of stages
single-stage
Flow

Min.: 1,370 m³/h
(48,381.09 ft³/h)

Max.: 1,650 m³/h
(58,269.2 ft³/h)

Operating pressure

Min.: -310 mbar
(-4.496 psi)

Max.: 320 mbar
(4.641 psi)

Nominal power

Min.: 18.5 kW
(25.153 hp)

Max.: 21.3 kW
(28.96 hp)

Description

General features: ●Max Air flow to 2480m3/h; ●Rated vacuum to -730mbar; ●Rated pressure to 1040mbar; ●IE2/IE3 high efficiency is available; ●With Thermal protection (PTC); ●100% Oil free, Easy installation, Maintance free; ●CE, ROHS,UL,ATEX certification approvaled; ●Broadband frequency and voltage used worldwide; ●High quality bearing used to Anti-high temperature to 180℃-200℃;
