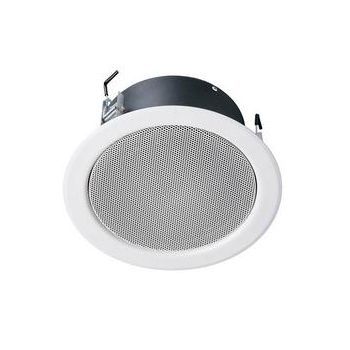

Ceiling speaker, 6 W, 100 V, certified
according EN 54-24, compliant BS 5839
• waterproofed 165 mm full range speaker
• with ceramic block and thermal fuse
• Powder-coated metal housing
• wire protection
• 3 spring clamps with cropped leg spring
• increased clamp force and shortened tension distance
• firedome for a higher passive security
• RoHS-compliant
• Rated voice/noise power 100 V (Watt): 6/3/1,5
• Frequency range (Hz): 404 - 10.100
• Frequency response IEC268-5 (-10dB) (Hz): 80 - 24.000
• Ceiling cut out (mm): 198
• Dispersion angle-6 dB, 500 Hz: 180°
• Dispersion angle-6 dB, 1 kHz: 175°
• Dispersion angle-6 dB, 2 kHz: 100°
• Dispersion angle-6 dB, 4 kHz: 50°
