Digital video camera VR1000

for vehiclessecurityinspection

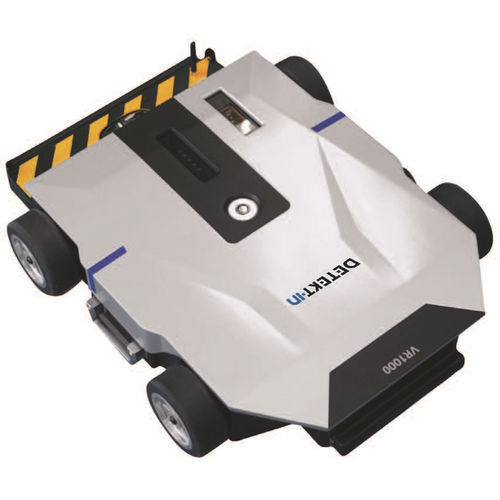

VR1000 Vehicle Chassis Inspection Robot – Intelligent Scanning Camera – Portable 18kg – Automatic License Plate Recognition – 4h Autonomy


Vehicle chassis inspection robot equipped with intelligent scanning camera used to image vehicle undercarriages. Wireless manual control device enables agents to view real-time chassis video and complete chassis images to easily detect illegal activities such as object concealment and chassis modifications.


Portable and Mobile Without Infrastructure
Mobile and portable features requiring no driver cooperation and no support installation requirements. Single-person transport possible. No support installation or pre-deployment requirements. High road adaptability meeting temporary inspection demands, can be rapidly deployed.


HD Imaging and Fixed Point Observation
Complete HD chassis image automatically displayed with touch zoom for detail viewing. Fixed point observation after position specification to meet inspection needs. Chassis image resolution 2048 × 6500 pixels (5-meter vehicle). Automatic long-distance straight-line imaging.


Single-Button Easy Inspection
No driver cooperation needed, vehicle stationary during inspection. Automatic scanned vehicle alignment. Single touch operation on manual control device to obtain vehicle chassis imaging automatically. Single scan time ≤30 seconds (5-meter vehicle). Scanning speed 0.3-1.0 m/s (adjustable).


License Plate Recognition and Data Comparison
Automatic license plate recognition associated with vehicle chassis image. Inspection image can be compared with historical data. Manual control device is standard 10-inch tablet. Remote operation distance ≤30 m.


Technical Specifications

• Imaging method: Optical
• Scannable vehicle types: Small, medium, and large vehicles
• Scanning method: Stationary vehicle, robot passes under chassis
• Chassis image resolution: 2048 × 6500 pixels (5 m vehicle)
• Scanning speed: 0.3-1.0 m/s (adjustable)
• Single scan time: ≤30 seconds (5 m vehicle)
• Continuous operation autonomy: ≥4 hours (standard battery, tool-free replacement)
• Manual control device: Standard 10-inch tablet
• Remote operation distance: ≤30 m
• Dimensions: ≤580 × 450 × 110 mm
• Working surface requirements: Grade 4 or higher highway (no large potholes)

Mobile robot chassis inspection solution for border posts, border inspections, road checkpoints, major event security, critical sites requiring temporary or short-duration vehicle inspections to detect hidden objects, explosives, weapons, narcotics, goods, and chassis modifications.
