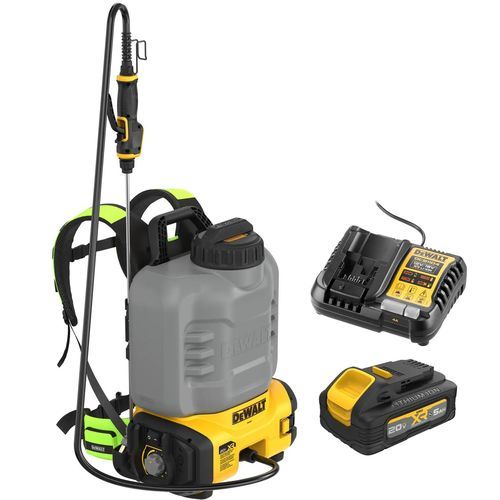

Mobile backpack sprayer DCCS1100GH1foamdetergentliquids
Add to favorites
Compare this product
Characteristics
- Mobility
- mobile
- Sprayed material
- foam, detergent, liquids
- Technology
- battery-powered
- Other characteristics
- for the construction industry, cordless
- Flow rate
Max.: 3 l/min
(0.8 us gal/min)Min.: 0 l/min
(0 us gal/min)
Description
Overview
The DEWALT® DCCS1100 20V MAX* XR concrete chemical sprayer is designed for demanding concrete chemical applications and surface treatments. The unit delivers up to 150 PSI of spray pressure and a 10-speed adjustable flow dial up to 0.8 gallons per minute. When used with the DCBP520G battery the sprayer can cover up to 10,000 sq. yards and spray up to 70 gallons on a single charge. The kit includes backpack-style hi-viz straps and six interchangeable nozzles for jobsite versatility.
Features
Includes
Technical Specifications
The DEWALT® DCCS1100 20V MAX* XR concrete chemical sprayer is designed for demanding concrete chemical applications and surface treatments. The unit delivers up to 150 PSI of spray pressure and a 10-speed adjustable flow dial up to 0.8 gallons per minute. When used with the DCBP520G battery the sprayer can cover up to 10,000 sq. yards and spray up to 70 gallons on a single charge. The kit includes backpack-style hi-viz straps and six interchangeable nozzles for jobsite versatility.
Features
- Performance suited for concrete curing, release agents and cleaning compounds.
- Powerful spray: up to 150 PSI and up to 37 ft. spray distance.
- High flow capability: up to 0.8 gallons per minute; up to 70 gallons per charge and up to 10,000 sq. yards coverage with DCBP520G battery.
- Broad chemical compatibility with common curing compounds, form releases and concrete cleaners (see manual for full compatibility list).
- 10-speed adjustable flow rate dial for precise application control.
- On-board storage pouch for included nozzles.
- Two hi-viz backpack straps for carrying convenience on site.
- Battery gauge indicator on the sprayer handle to monitor state-of-charge.
- Enclosed battery housing to protect the battery during use.
- Included nozzle types for varied applications: brass large flow 33º, brass medium flow 42º, brass small flow 62º, adjustable brass nozzle, foaming nozzle, jet stream nozzle.
Includes
- (1) DCCS1100 Concrete Chemical Sprayer
- (1) Sprayer Wand
- (1) Adjustable Brass Nozzle
- (1) Large Flow 33 Degree Nozzle (brass)
- (1) Medium Flow 42 Degree Nozzle (brass)
- (1) Small Flow 62 Degree Nozzle (brass)
- (1) Jet Stream Nozzle
- (1) Foaming Nozzle
- (1) DCBP520G Oil-Resistant 5Ah Powerstack Battery
- (1) Charger
Technical Specifications
- Product Type: Sprayer
- Voltage: 20 V
- Cordless or Corded: Cordless
- Power Source: Battery
- Tool Only: No
- Maximum Spray Pressure: Up to 150 PSI
- Adjustable Flow: 10-speed flow rate dial
- Maximum Flow Rate: Up to 0.8 gallons per minute
- Maximum Spray Distance: Up to 37 ft.
- Estimated Coverage with DCBP520G battery: Up to 10,000 sq. yards (up to 70 gallons per charge)
- Included Nozzles: Brass large flow 33º, brass medium flow 42º, brass small flow 62º, adjustable brass nozzle, foaming nozzle, jet stream nozzle
- On-board storage for nozzles
- Carrying: Two hi-viz backpack straps
- Battery Features: Battery gauge indicator on handle; enclosed battery housing
- Warranty: 3 Year Limited Warranty
