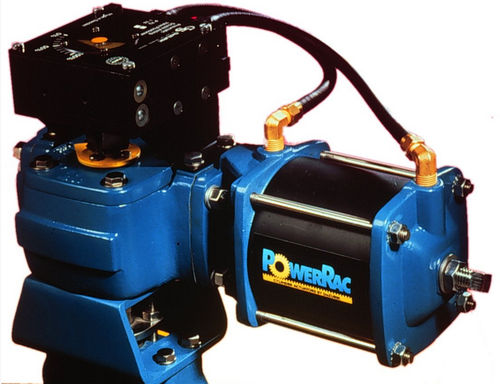

Pneumatic cylinder PowerRac®rotaryrack-and-piniondouble-acting
Add to favorites
Compare this product
Characteristics
- Type
- pneumatic
- Movement
- rotary
- Technology
- rack-and-pinion
- Configuration
- double-acting, spring-return
- Other characteristics
- compact
Description
Design Features:The rack and pinion design of PowerRac® Actuators provides high-operating torque for accurate control in modulating services, and high opening torque for on/off services. The unique square collet coupling rigidly clamps the drive pinion to the valve shaft, eliminating backlash in the drive connection. Positioners are solidly mounted on the actuator housing with a square nut, feeding exact valve position directly to the positioner. The modular design and compact size allow the actuator to be close coupled to the valve. Standard ISO bolt circle allows PowerRac® Actuators to be used on all DeZURIK quarter turn valves. Double-acting or fail-safe spring-return cylinder options are available. PowerRac Actuators have a Lifetime Warranty.
Catalogs
Valve Selection Guide
28 Pages
