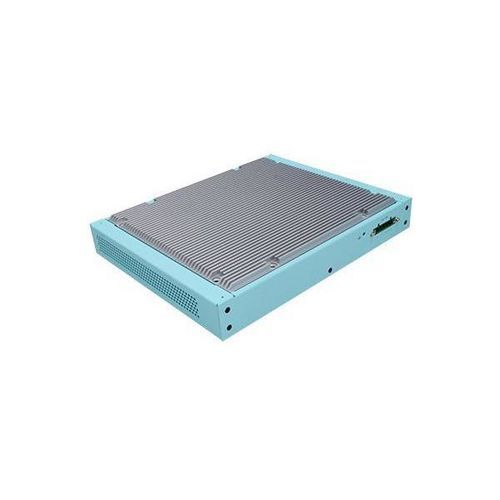

DC UPS UPS-IP300Li-ionruggedfor railway
Add to favorites
Compare this product
Characteristics
- Electrical characteristics
- DC
- Type of energy storage
- Li-ion
- Other characteristics
- rugged
- Applications
- for railway
- Output power kVA
Max.: 0.33 kVA
(0.448675 hp)Min.: 0.27 kVA
(0.367098 hp)- Input voltage
Max.: 137.5 V
Min.: 77 V
- Output voltage
Max.: 12.6 V
Min.: 9 V
- Power
300 W
- Capacity
0.08 kWh
Description
Product Overview
Features
Certifications
Tags
Country of Origin
Technical Specifications
- EN50155 compliant battery based Uninterruptible Power Backup system
- 110Vdc (77VDC~137.5VDC) power input and 9~12.6Vdc power output
- 3S2P 3900mAh Lion battery integrated, max. 300W continuous output
- Backup time >10min at 300W
- 80 watt-hour (7.4Ah*10.8V) capacity
- Discharge operation temperature: -20°C ~60°C
- Storage 3 months at 45°C storage temperature (Recovery 90% after storage)
- 9-pin input power connector, 2x 8-pin output power connectors
Features
- Wide-temp: -20~60°C
Certifications
- EN 50155
Tags
- #EN 50155
Country of Origin
- Taiwan
Technical Specifications
- Product type: Railway UPS
- Power input: 110VDC (77VDC~137.5VDC)
- Power output: 9~12.6VDC
- Battery: 3S2P 3900mAh Lion battery integrated
- Maximum continuous output: 300W
- Backup time: >10min at 300W
- Capacity: 80 watt-hour (7.4Ah*10.8V)
- Discharge operation temperature: -20°C ~60°C
- Storage: 3 months at 45°C (Recovery 90% after storage)
- Input connector: 9-pin
- Output connectors: 2x 8-pin
- Certification: EN50155
- Country of Origin: Taiwan
