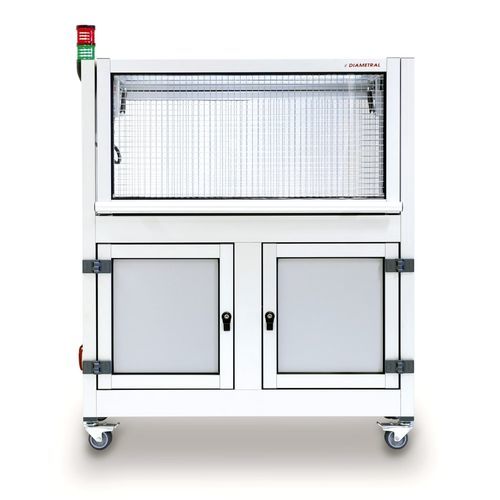

Data workstation INQ-1

measuringergonomicmobile

Robust. Stable. Mobile. And above all perfectly safe. The INQ-1 test box for rotating machines is assembled from thick-walled aluminum profiles and equipped with reliable protective elements. Ready to handle even the most intensive tests. It is an invaluable helper when testing electrotechnical products, rotating machines and brakes. Ergonomics in practice The INQ-1 consists of the test box itself in the upper part and the high-current power supply section in the lower part. The testing area is located directly in front of the worker under a large transparent cover, which provides not only safety during work, but also a perfect overview of what is happening on the worktop. The device under test can be installed on the board very easily using many T-slots. The high load-bearing capacity of the board, up to 200 kg, allows working with really heavy machines in the box. The high-current section stored under the plate contains connectors and power for all apparatus, as well as sockets and space where you can place your own measuring and data equipment. INQ-1 test box in detail The hinged cover on two gas struts for easier opening is equipped with a handle along the entire front length. For easy handling, the test box is equipped with four double wheels with a high load capacity and brakes. Control and measurement in the box is mediated by means of five RS-232 connectors and five RJ-45 connectors. Supply and control voltages are separated from each other. All the necessary wires are routed into the workspace via protective brushes, which ensure the tightness of the test box. Robust construction of the test box made of strong profiles.
