Earth impedance testing device DNA

automaticfor fiber opticscommunication network

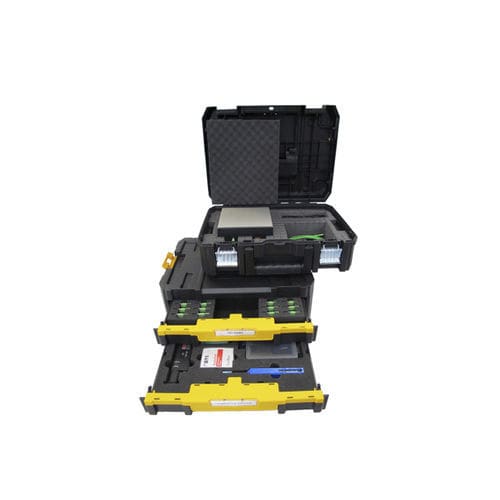

The DIAMOND Network Acceptance (DNA) Kit is an FBG-based (Fiber Bragg Grating), easy-to-use testing system for fiber-optic P2P networks. The system provides the capability of a clear Optical Line Identification (OLiD), thanks to the integration of FBGs within connectivity components. This allows the line integrity and link correctness to be checked from a single access point. OLiD is a technically valuable and efficient alternative to the time-and resource-consuming red-light examination method. The system does not interfere with the standard telecom P2P operating bandwidth, therefore it can also be used on lines that are already active. FEATURES AND BENEFITS • Available with up to 48 unique OLIDs in the 800 nm to 870 nm range • Does not interfere with the standard P2P telecom wavelengths • Test kit can be deployed rapidly, forgoes the need for expensive red-light testing (dual manpower not needed) and reduces the need to access private premises CONTENT LIST • Durable, stackable tool storage box with top unit for measuring device and 2 shallow drawers for coded UGT modules and accessories  • Diamond OLID Interrogator, incl. USB cable • Up to 48 different OLID optical transition adapters (UGTs) AVAILABLE UGT’S • E-2000™ APC • F-3000™ APC LC compatible • SC APC • Other interface types upon request (only APC)
