Line-scan camera PYROLINE 128LS

industrialthermal imaginginfrared

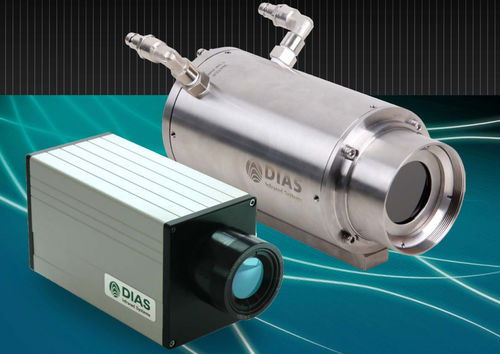

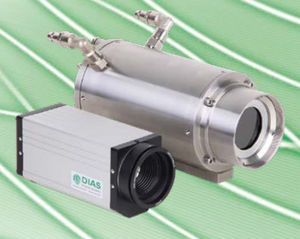

T he infrared line cameras PYROLINE allow you high-speed non-contact measurement of temperature profiles. The cameras are specially designed for long-term use in fixed-mounted applications. For general purpose use the spectral ranges from 8 μm to 14 μm and 3 μm to 5 μm are available. The spectral ranges from 4.8 μm to 5.2 μm (which is particularly suitable for the measurement of temperature profiles in glass) and 0.8 μm to 1.1 μm (for metal) are for special applications. With an uncooled infrared linear array (128, 256 or 512 pixels) you can realize non-contact measurement with 256 lines per second (512 lines per second optional) in temperature ranges from 0 °C to 3000 °C. The high-speed version PYROLINE HS 512N even provides 2000 lines per second. The camera has an aluminium compact-housing (IP54) or in a stainless steel industry protection housing IP65. More housing variants are available. Different lenses with a field of view up to 90° are available. Measurement results can be transferred to your computer with real-time data transmission via fast ethernet with up to 2000 lines per second. Stand-alone operation without computer is possible too. Alarm and thresholding monitoring as well as triggered measurements are practicable. Advantages of line cameras compared to line scanners: • no opto mechanical Scanner • high measurement speed up to 2000 lines/second • use of uncooled infrared sensor arrays • simultaneous measurement of all measureme
