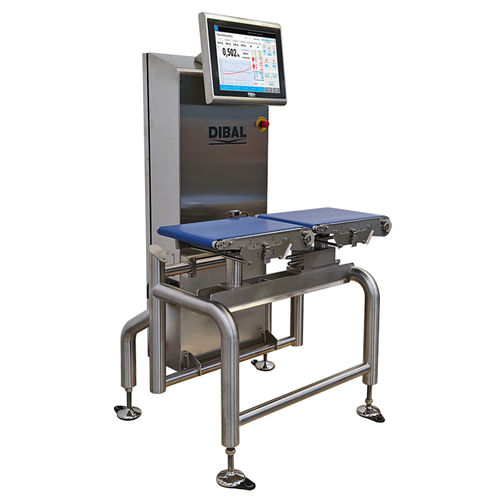

Conveyor checkweigher CW-5000

for production linesfor the food industrydynamic

Automatic checkweighers for production lines, in AISI304 and with IP protection. • Weighing: up to 120 ppm. • Discrimination by weight checking. • Certified according to 2014/32/UE MID Directive: approved equipment. • Modular design. • Ranges from 6 kg/ 2 g to 30 kg/ 10 g. Weighing • Weighing type: • Dynamic or static. • Ranges depending on the dimension of the weighing conveyor: • 6 kg / 2 g with conveyor of L400 x W290 mm (MID optional). • 20 kg / 10 g or 30 kg / 10 g with conveyors of L600 x W400 mm (MID optional), L1,000 x W400 and L800 x W600 mm. Rejection system (optional)* • Rejection system type: • “Air-jet ®” air blowing.* • Pneumatic piston.* • Accompanying blade.* • Pusher blade.* • Number of rejectors and function: • 1 rejector: weight out of range. • 2 rejectors: weight above and weight below range. • Rejector for unprocessed product. • Rejector for product with metal (necessary connection with metal detector). Construction • Structure: • AISI 304L stainless steel and anodized aluminium. • Hygienisable conveyors: • Hygienisable belts (all of them with FDA approval): • IP69K drum motor. • Folding toe boards for easy cleaning of the conveyor. • Guides: • AISI 304L stainless steel, anodized aluminum and cestilene. • TFT 10,1’’ capacitive touch screen (optional TFT 15’’). • Vertical electric drawer. Communications to PC • Ethernet TCP/IP. • RS-232. • 4 USB (3.0). PC software • Direct connection to equipment from any PC of the network with an internet browser. • Programming. • Data export to Excel or CSV. Power supply & compressed air • Electrical: 230 V / 50 Hz. • Air: max. 150 l/min (at 6-8 bar) (in case of incorporating rejection system).
