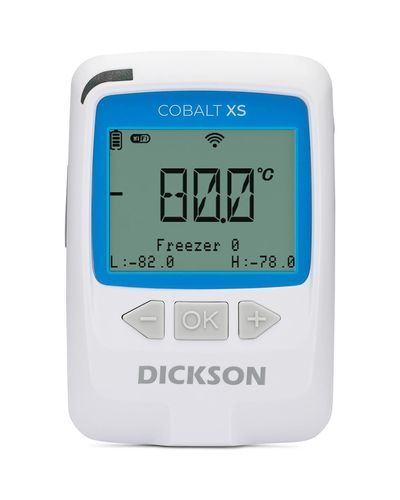

Temperature and humidity data-logger Cobalt XS

universalCO2relative humidity

Overview
The Cobalt XS Wi‑Fi data logger connects easily via your Wi‑Fi network to your OCEAView or DicksonOne monitoring solution. With its compact form factor and efficient design, the Cobalt XS Wi‑Fi supports a variety of external sensors to meet many industrial and logistical requirements. Ideal for life sciences, food & beverage and logistics sectors, it provides an economical and reliable way to monitor environmental parameters of sensitive assets, storage facilities, products and equipment.

Key features

• Easy network integration via Wi‑Fi
• Works with OCEAView (Cloud and On‑premises) and DicksonOne (Cloud)
• Compatible with a wide range of Dickson Smart‑Sensors
• Compact, efficient design
• High‑contrast LCD controlled by buttons

Specifications / technical details

• Applications: Refrigerators, freezers, ULT freezers, liquid nitrogen tanks, water baths, ovens, incubators, autoclaves, cold rooms, cleanrooms, warehouses, standard equipment with 4‑20 mA / 0‑5 V / 0‑10 V output
• Supported Dickson sensors: Temperature; Temperature and relative humidity; Universal; CO2, temperature and relative humidity
• Sensor calibration options: ISO/IEC 17025 accredited; in‑house certified laboratory (non‑accredited); sensor swap recalibration
• Measurement points: Up to two simultaneous measurement points; one connector for single, dual or triple sensor probes (up to two points used simultaneously)
• Display and interface: 2.4‑inch (6.1 cm) LCD for configuration, server sync, latest readings, power indicator, battery level, signal strength; temperature display in °C or °F
• Monitoring software: Integration with OCEAView Cloud, OCEAView On‑premises and DicksonOne Cloud platforms
• Alarms: Alarms and alerts indicated by a flashing LED; detected by the logger and transmitted to the monitoring platform; 3 high and 3 low limits (programmable delay for each limit)
• Power: Two user‑replaceable 3.6 V lithium batteries (use only SAFT LS17500 batteries in Cobalt XS Wi‑Fi loggers)
• Operating conditions: 0 °C to +50 °C (+32 °F to +122 °F); 0 to 90 % RH (non‑condensing); maximum operating altitude 2 000 m (6 562 ft)
• Storage conditions: 0 °C to +50 °C (+32 °F to +122 °F); 0 to 90 % RH (non‑condensing); optimal storage around 25 °C (77 °F)
• Enclosure and dimensions: ABS plastic enclosure; 69 x 107 x 31 mm (2.7 x 4.22 x 1.22 inches); weight with battery: 130 g (4.6 oz)
• Mounting and installation: Wall mount with magnets and rubber non‑skid pad, screws or Velcro®; for indoor use only in non‑harsh environments
