Oil filter cartridge

waterfinewire mesh

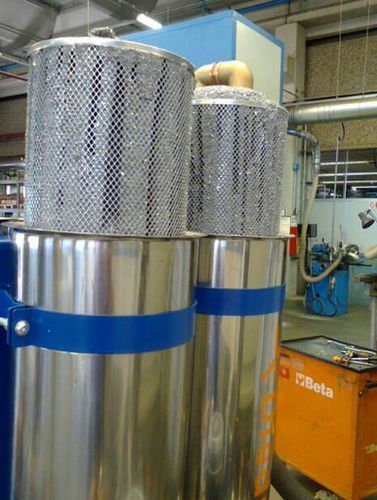

The dimensions of all Diedron filter cartridges are designed to optimally match the interior of the filtration bulb. MTH filter cartridges have galvanised metal bases as well and a protective structure in stretched galvanised wire mesh. The bases are flat to allow correct reciprocal fitting. To prevent unpleasant soiled liquid leakage, they feature a sheet metal sleeve that avoid pressure-induced deformations. The DIED 3 and DIED 5 cartridges have glazed and stamped metal bases, with a spring steel handle for easy extraction and expanded stretched metal mesh containment sheets for damage prevention during maintenance operations and, above all, for greater structural strength. With their reduced diameter, they have greater resistance to the pressures acting on the filtering cartridge itself. Both solutions use resin-cellulose with high accumulation power particularly suitable for use in the high-efficiency filtration of liquids. As this material cures after the pleating process, the phenolic resins bond to ensure consistency and excellent filtration properties. The filter elements (cartridges) of the CLEAN TOWER systems are of two types: - Resinated cellulose with high accumulation capacity, particularly suitable for high-efficiency liquid filtration. As this material cures after the pleating process, the phenolic resins bond to ensure consistency and excellent filtration properties. Ideal for filtration to 5 μ. - PET, low absorption coefficient Polyester, thermally bonded with high efficiency, double calendering and final smoothing of the filtering element. The nominal filtration rating is 1-3 μ.
