High-concentration inert gas generator

process

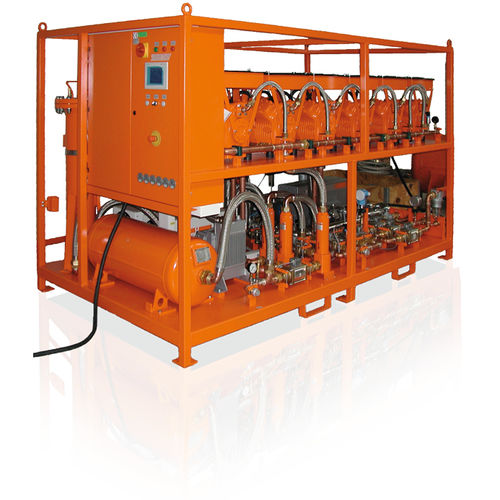

SF6 UNITS FOR ACCELERATORS Extremely powerful We also deliver custom-tailored solutions for the SF6 gas handling of electron accelerators. Compared to the "normal" gas handling in the energy sector, larger SF6 gas volumes – usually several tons – have to be handled in the field of electron accelerators. Therefore, high-performance system components as well as large supply lines (up to DN 100) are needed, so that the gas volume can quickly and effectively be filled from the storage tank into the accelerator and recovered again. The SF6 gas is filtered during operation by aid of large filter units and dried at the same time. Unit example: SF6 gas handling plant for an electron accelerator. The plant serves for evacuation, filling, gas recovery as well as drying and filtration of SF6 gas at the same time. On customer request we connect several accelerator units over the hall piping on the central gas handling plant.
