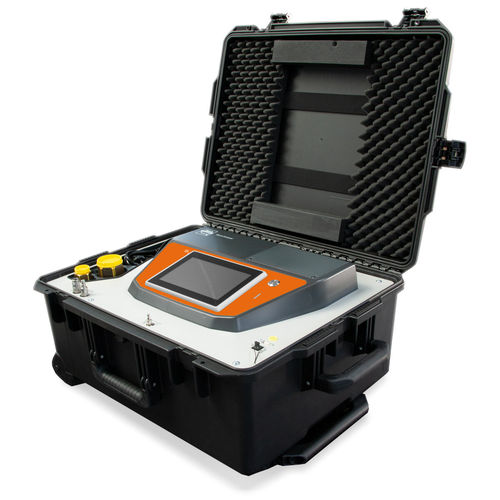

Moisture measuring instrument 3-035R-R series

SF6 volume concentrationvolumespeed of sound

Special features Gas type : SF6 Sensors : moisture Features : storage of measuring results Features : WiFi Features : gas return system Standard version • indication of moisture concentration in dew point °C or °F, referred to atmospheric or inlet pressure, • reversible to indication in ppmv or ppmw • indication of inlet pressure in bar, psi, MPa and kPa (in pa or pe) to be selected on the touch screen • 6 m long connecting hose with DN8 and DN20 DILO couplings • 2 m long electrical connecting cable • USB flash drive with data file for evaluation and reading out of measuring results Description For high-precision gas quality analysis of several parameters With this multi-function device, depending on the version, up to four quality parameters can be determined with just one measurement. The MirrorAnalyser SF6 uses the physical dew point mirror measuring principle which is characterised by its high precision and utmost reliability in order to measure the moisture content. By cooling the integrated mirror the moisture content of the gas is determined by measuring the temperature depending on the condensation or icing of the mirror. The other parameters of the gas quality are determined by electrochemical sensors and measurement the velocity of sound. High-quality manufacture and ergonomic design guarantee the quality standards for a compact, user- and maintenance-friendly measuring device with high measuring accuracy. Our field-replaceable electrochemical sensors offer a great benefit as the device is ready for use immediately after replacement without any down times.
